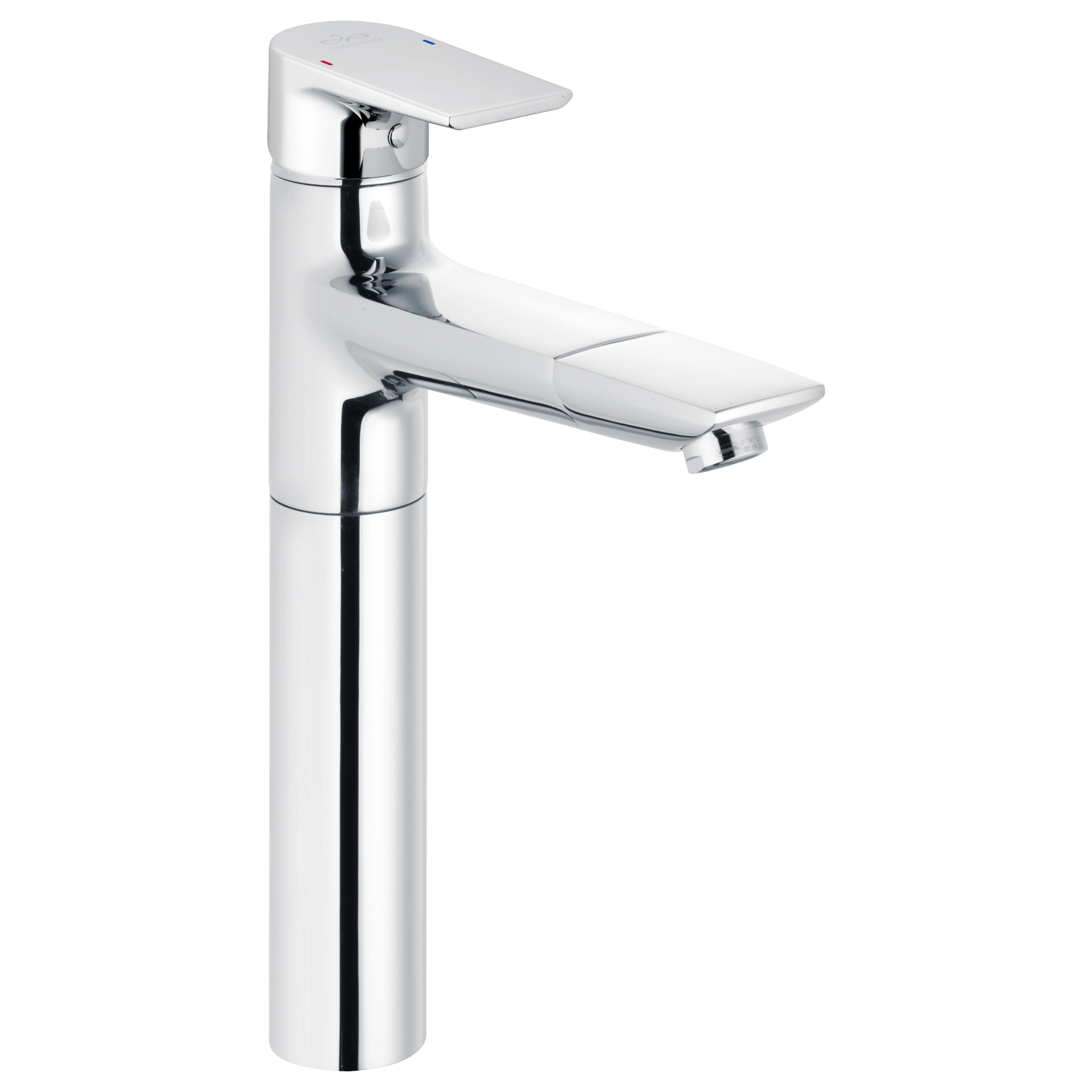

alpha_400 Kitchen mixer with pull-out spray

Note: We reserve the right to make technical changes that serve progress at any time. Product images may differ from the original. Errors excepted.

Loading...

Item Properties


  • Z069803-00010
  • Heinrich Schulte
  • Kitchen mixer
  • alpha_400
  • chrome
  • reach 180 mm
  • height to aerator 220 mm
  • maximum height 310 mm
  • cartridge 35 mm
    with hot water limiter
  • spout swivelling and extractable
  • materials in accordance with German Drinking Water Regulations and FEA
  • lever metal
  • flexible hoses 3/8" DIN DVGW
  • aerator flow rate class A
  • single hole mounted
  • with metal shower hose
    protected against backflow
  • with shaft screw connection

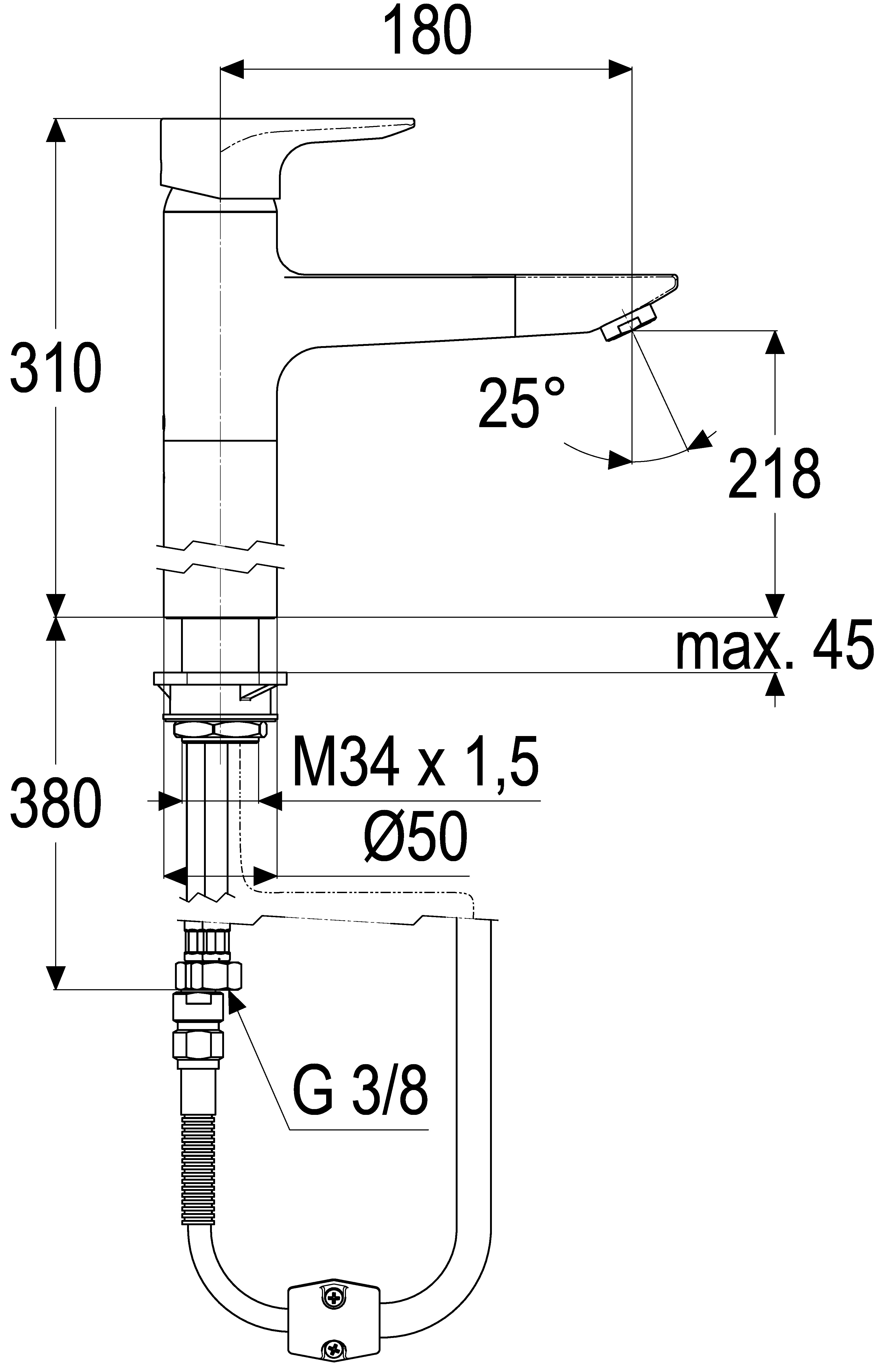

Dimensioned drawing

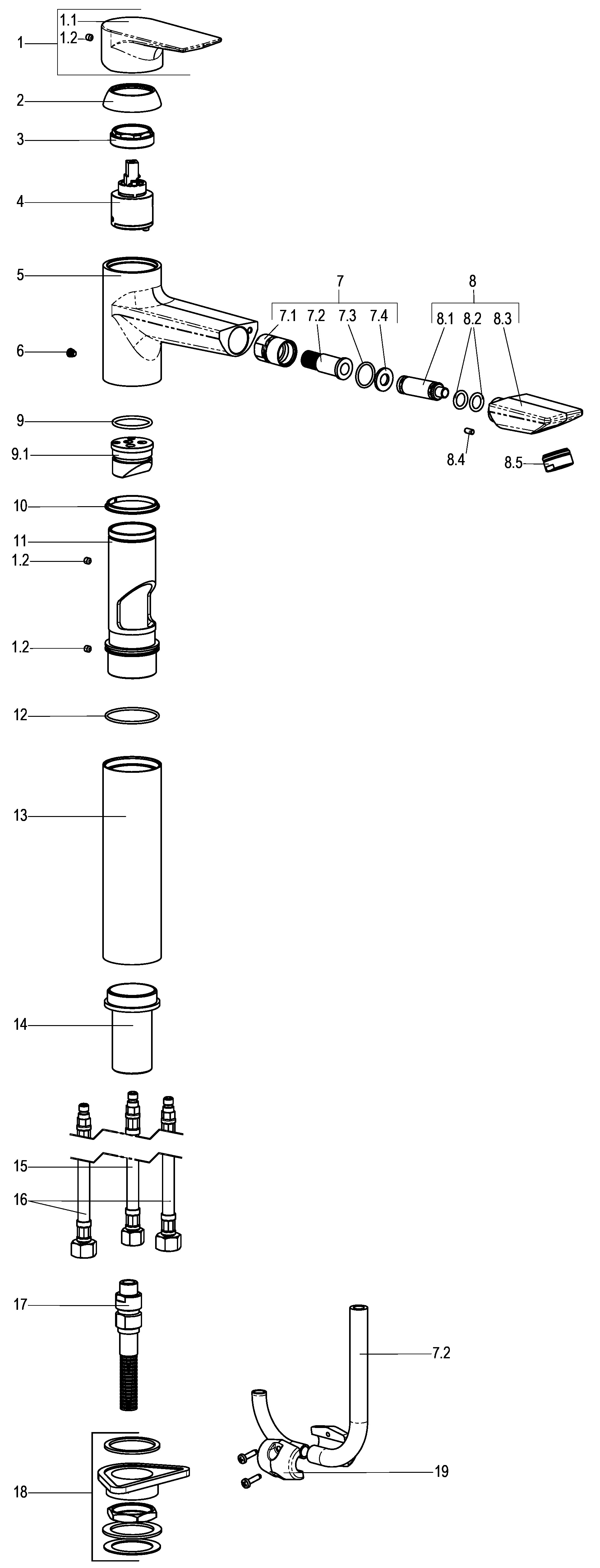

Exploded drawing


Spare parts list


Position Description Article-No
01 SH OPERATING LEVER ALPHA Z069990-00010
02 SH SCREW CAP Z009134-00010
03 SH SCREW CONNECTION TO LINE 62 Z009111-00000
04 SH CARTRIDGE FOR HIGH PRESSURE Z009200-00000
06 SH SCREW WITH STOP Z000235-00000
07 SH PULL-OUT SPRAY F. KITCHEN MIXE Z028804-00010
08 SH AERATOR CASCADE CLASS A Z013974-00010
15 SH FLEXIBLE HOSE M15 X 1 Z009103-00000
16 SH FLEXIBLE HOSE M10 X 1 – 3/8" Z009141-00000
17 SH CHECK VALVE M15X1 Z028914-00000
18 SH SCREW CONNECTION M34 X 1,5 Z009196-00000

The following components are included in the scope of delivery:


Monolever-Kitchen mixer
Shaft screw connection kit
Lead weight
Check valve
Assembly instruction
Care instruction
