Item Properties
- Z069834-00010
- Heinrich Schulte
- Kitchen mixer low pressure
- alpha_400
- chrome
- reach 180 mm
- height to aerator 220 mm
- maximum height 310 mm
- cartridge 35 mm
with hot water and flow rate limiter - spout swivelling and extractable
- materials in accordance with German Drinking Water Regulations and FEA
- lever metal
- flexible hoses 3/8" DIN DVGW
- aerator low pressure
- single hole mounted
- for unpressurized water heaters
with metal shower hose
protected against backflow - with shaft screw connection
with flow rate limiter 5 l/min

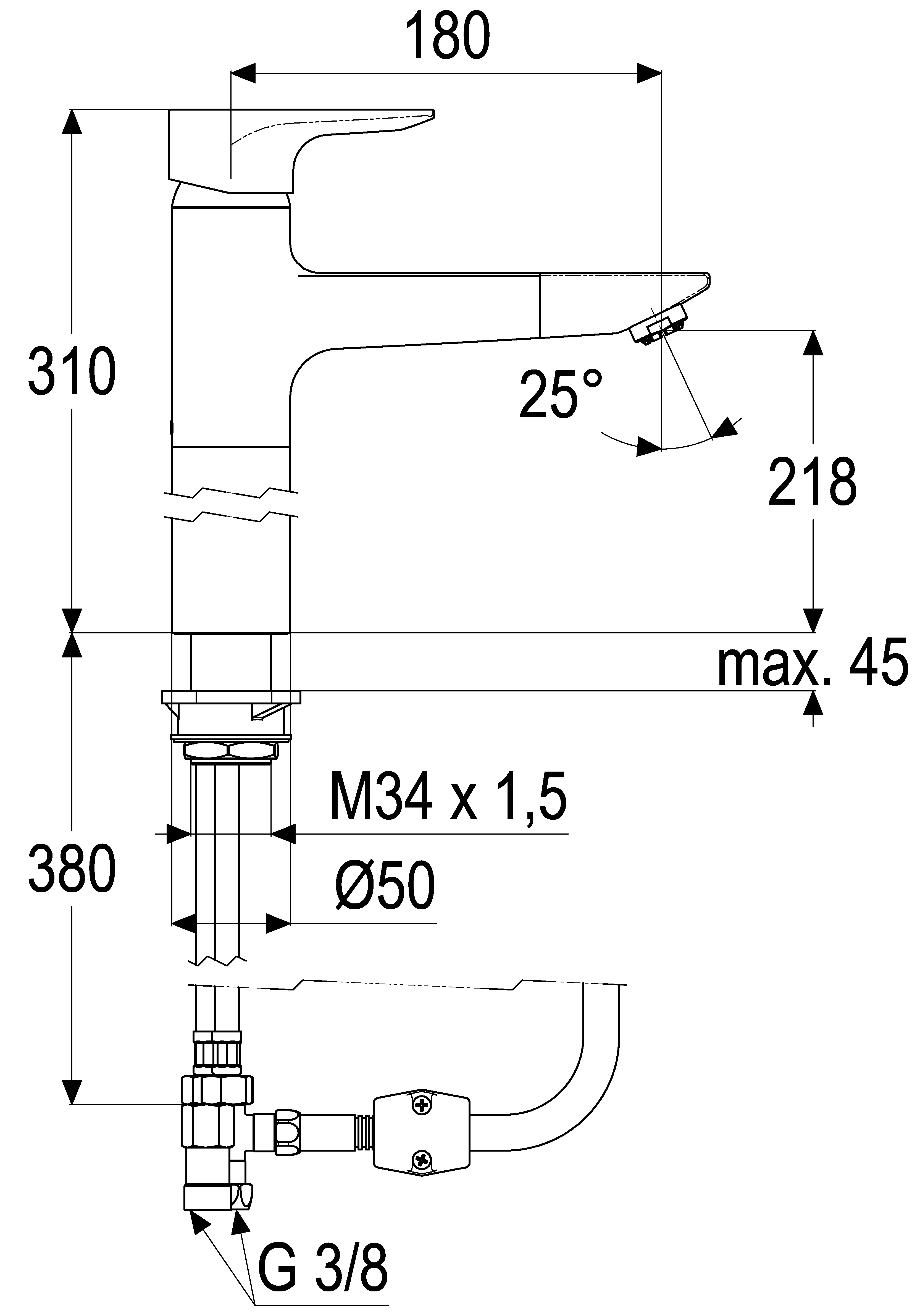

Dimensioned drawing
Durchflussdiagramm
