Item Properties
- Z069436-00010
- Heinrich Schulte

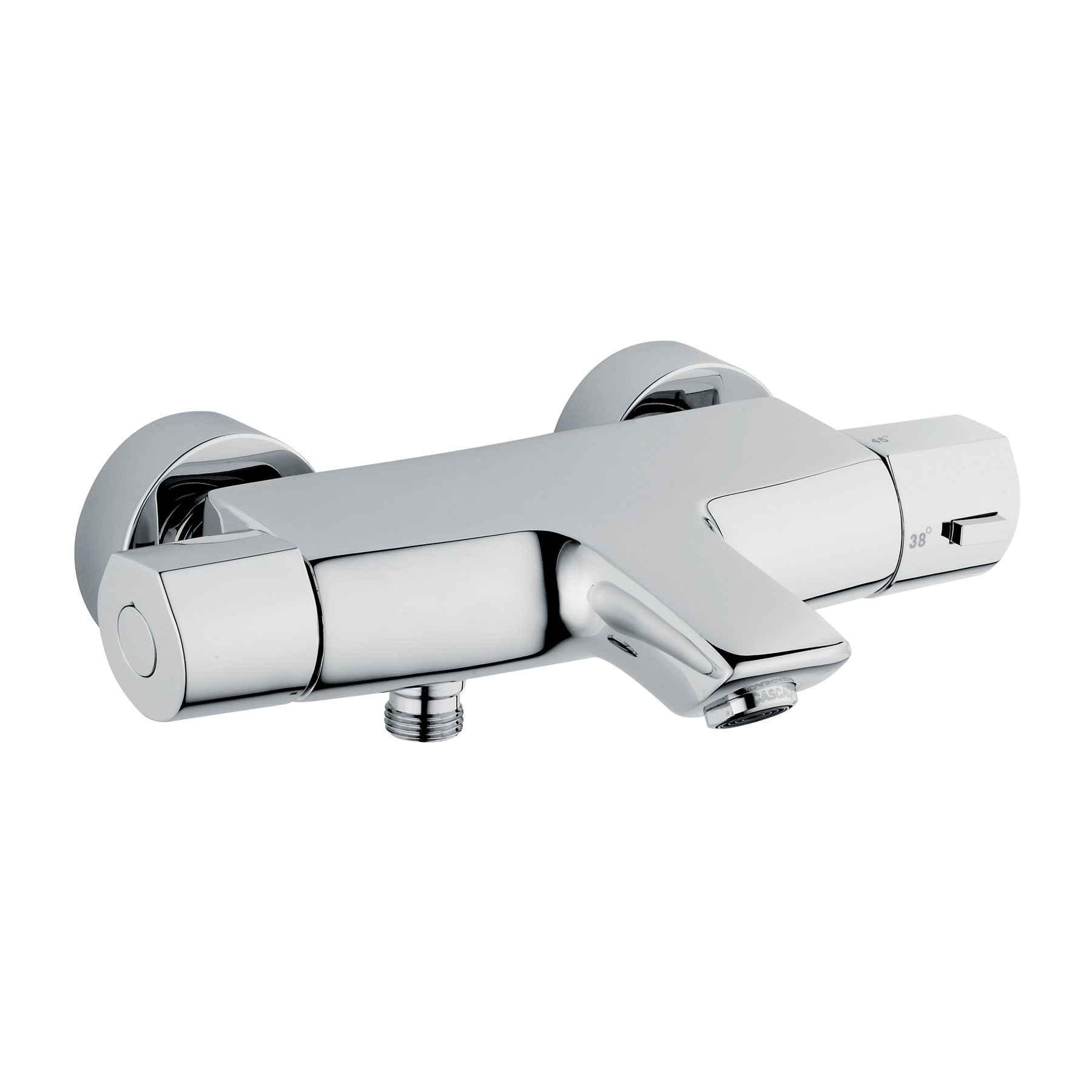

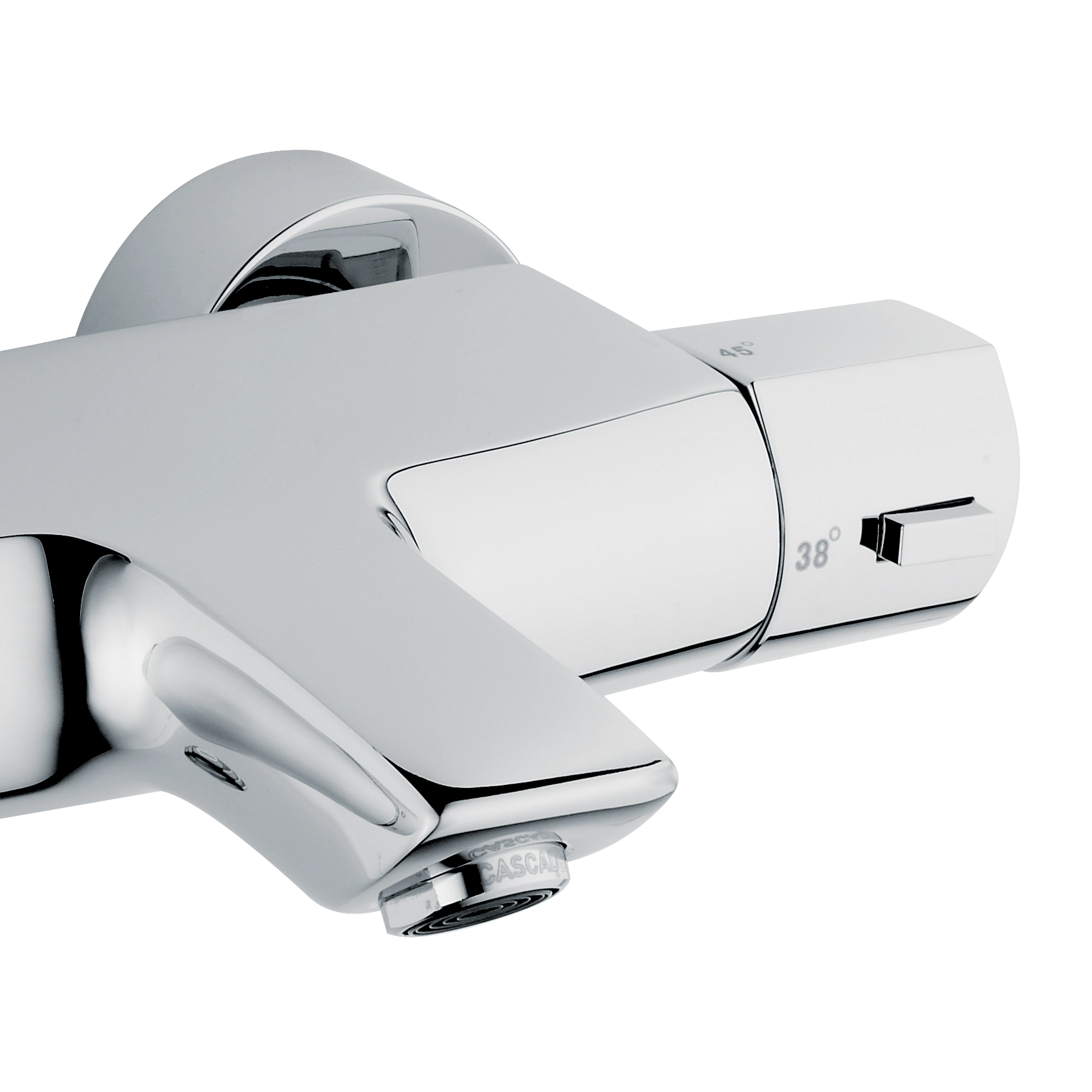

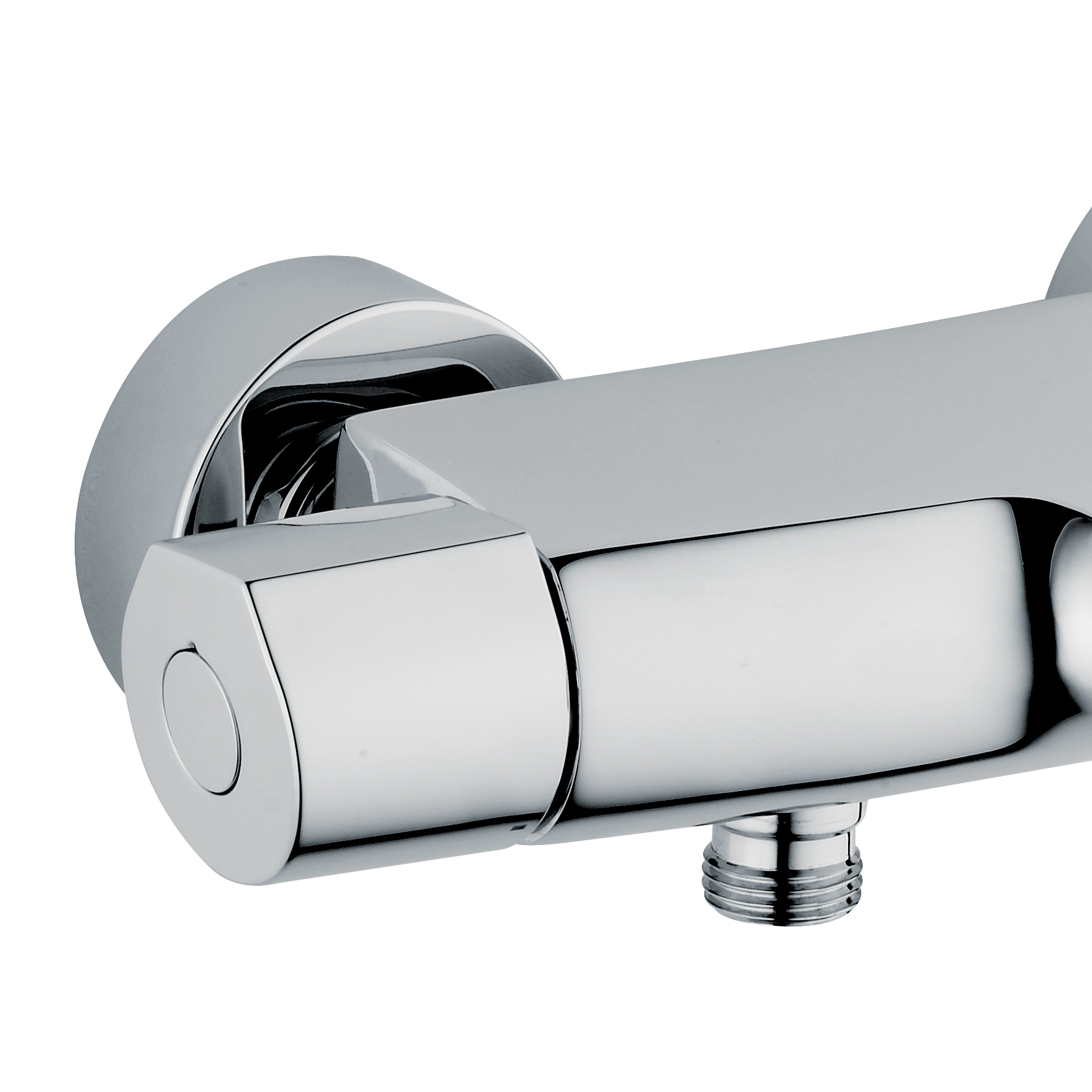

- Thermostatic bath mixer
- alpha_400
- chrome
- reach 160 mm
- maximum width 270 mm
- centre distance 135 – 165 mm
- S-connectors 1/2"
- diverter ceramic, shut-off function
- outlet to shower 1/2"
- thermo element and ceramic diverter
- materials in accordance with German Drinking Water Regulations and FEA
- aerator flow rate class B
- for wall mounting
- protected against backflow
with flow volume limiter
with covered S-connections
suitable for instantaneous water heaters
temperature control handle
with hot water safety stop at 38 degree - without shower set

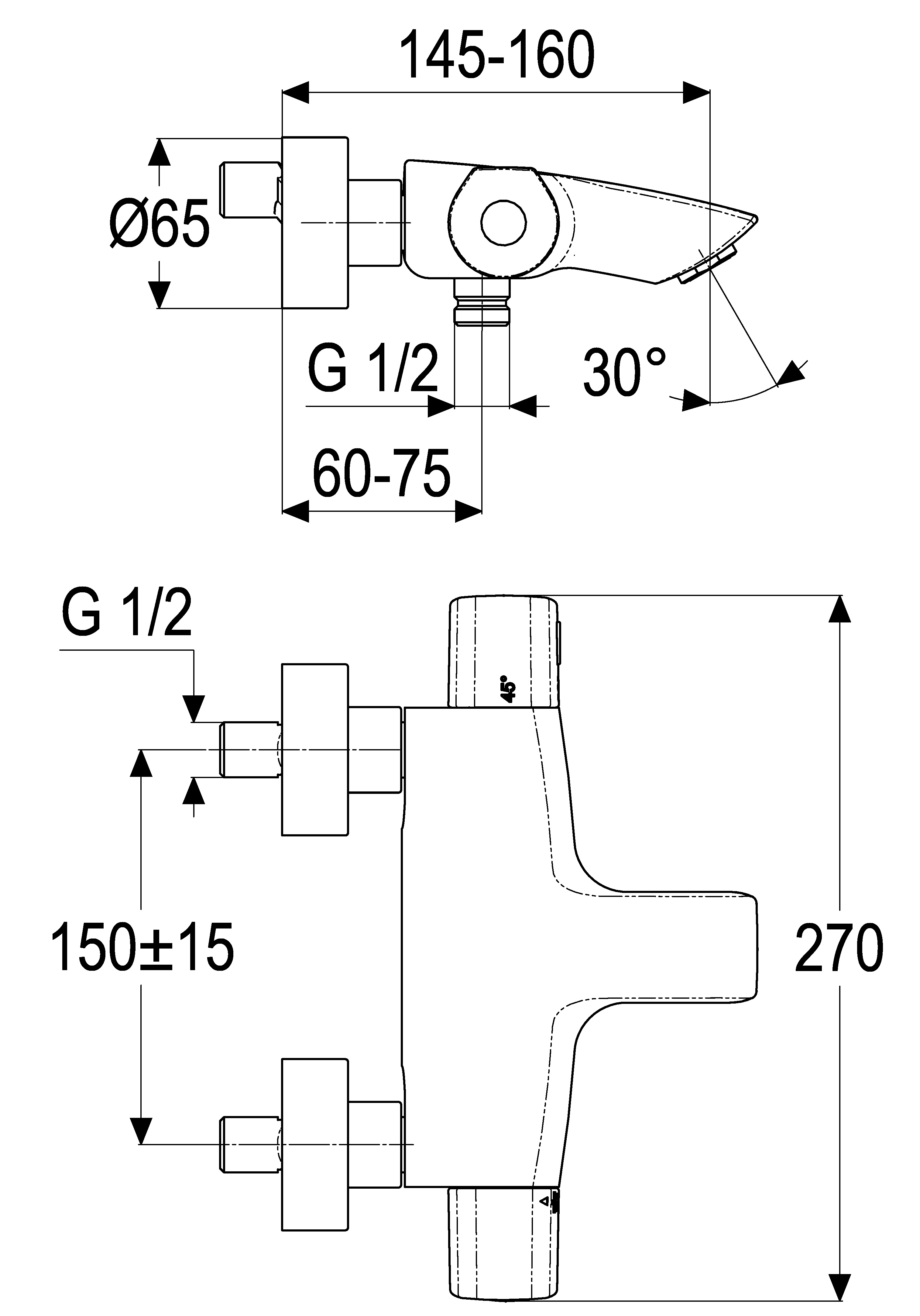

Dimensioned drawing
