Item Properties
- Z069647-00010
- Heinrich Schulte

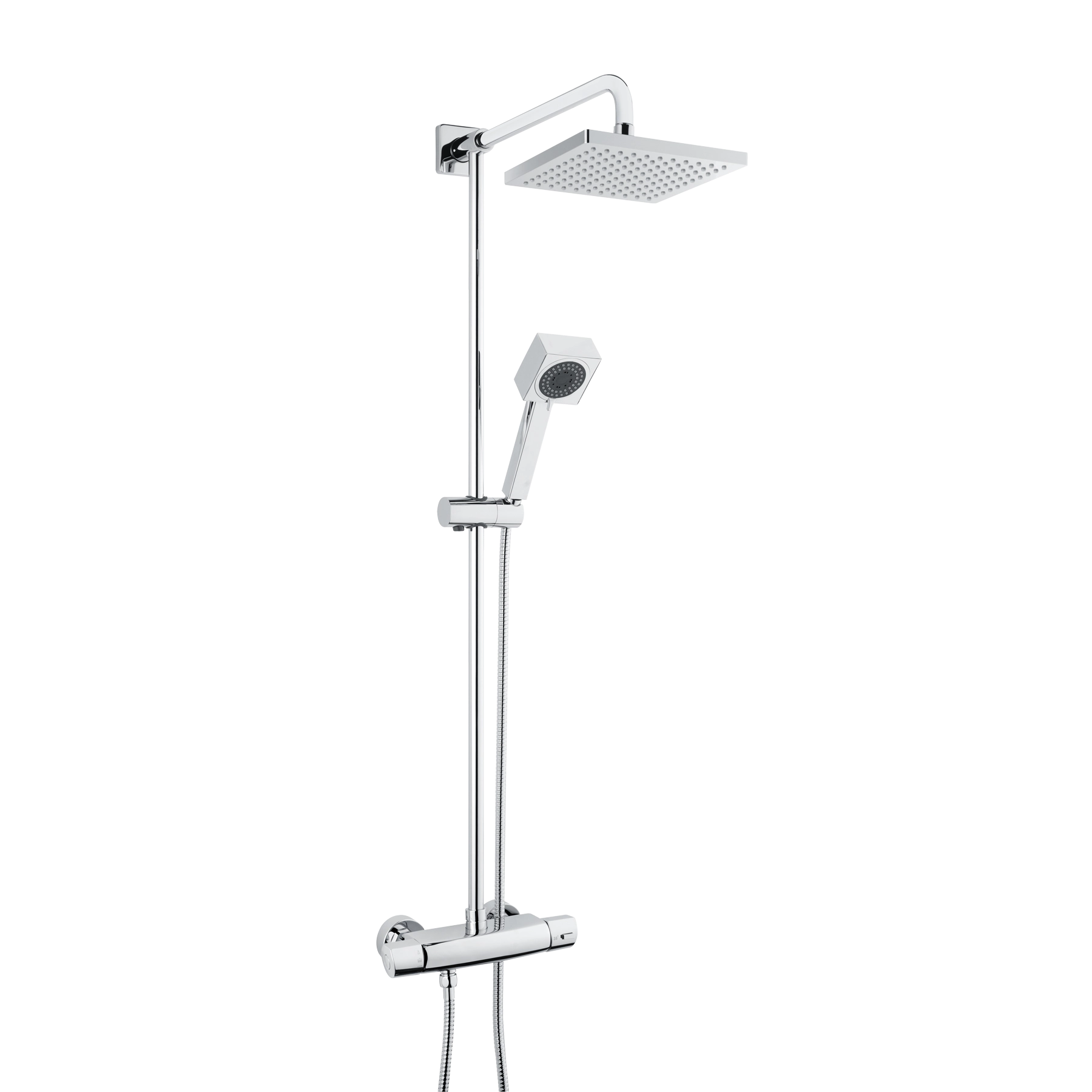

- Shower pipe thermostat
- alpha_400
- chrome
- maximum width 280 mm
- centre distance 135 – 165 mm
- S-connectors 1/2"
- diverter ceramic, shut-off function
- outlet to shower 1/2"
- thermo element and ceramic diverter
- materials in accordance with German Drinking Water Regulations and FEA
- hand shower Quadral III

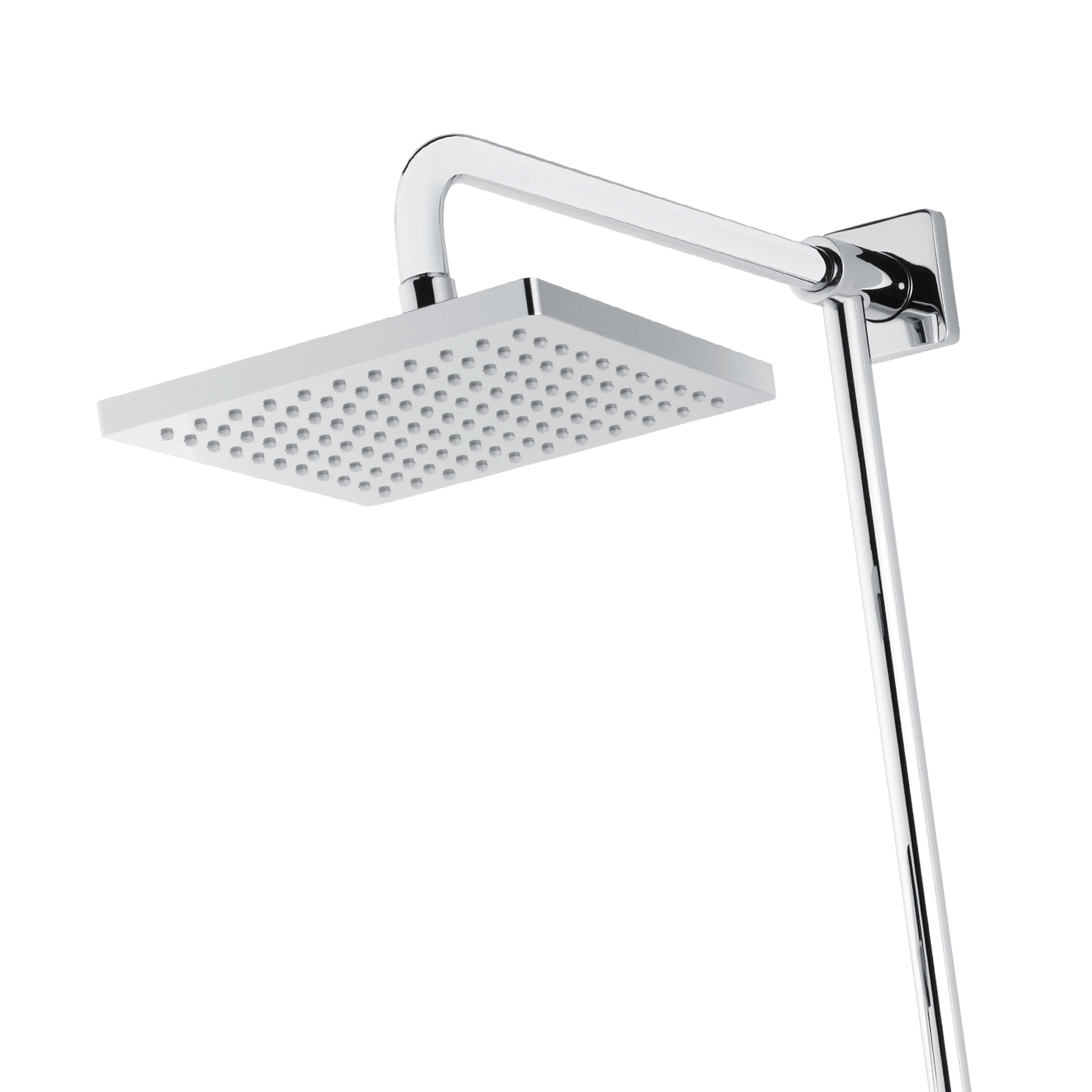

- rain shower Quadral
- shower hose 1250 mm with cone
- for wall mounting
- with water-bearing shower rod
with ball joint
protected against backflow
with selectable spray pattern
with covered S-connections
suitable for instantaneous water heaters
temperature control handle
with hot water safety stop at 38 degree - with mounted shower rod

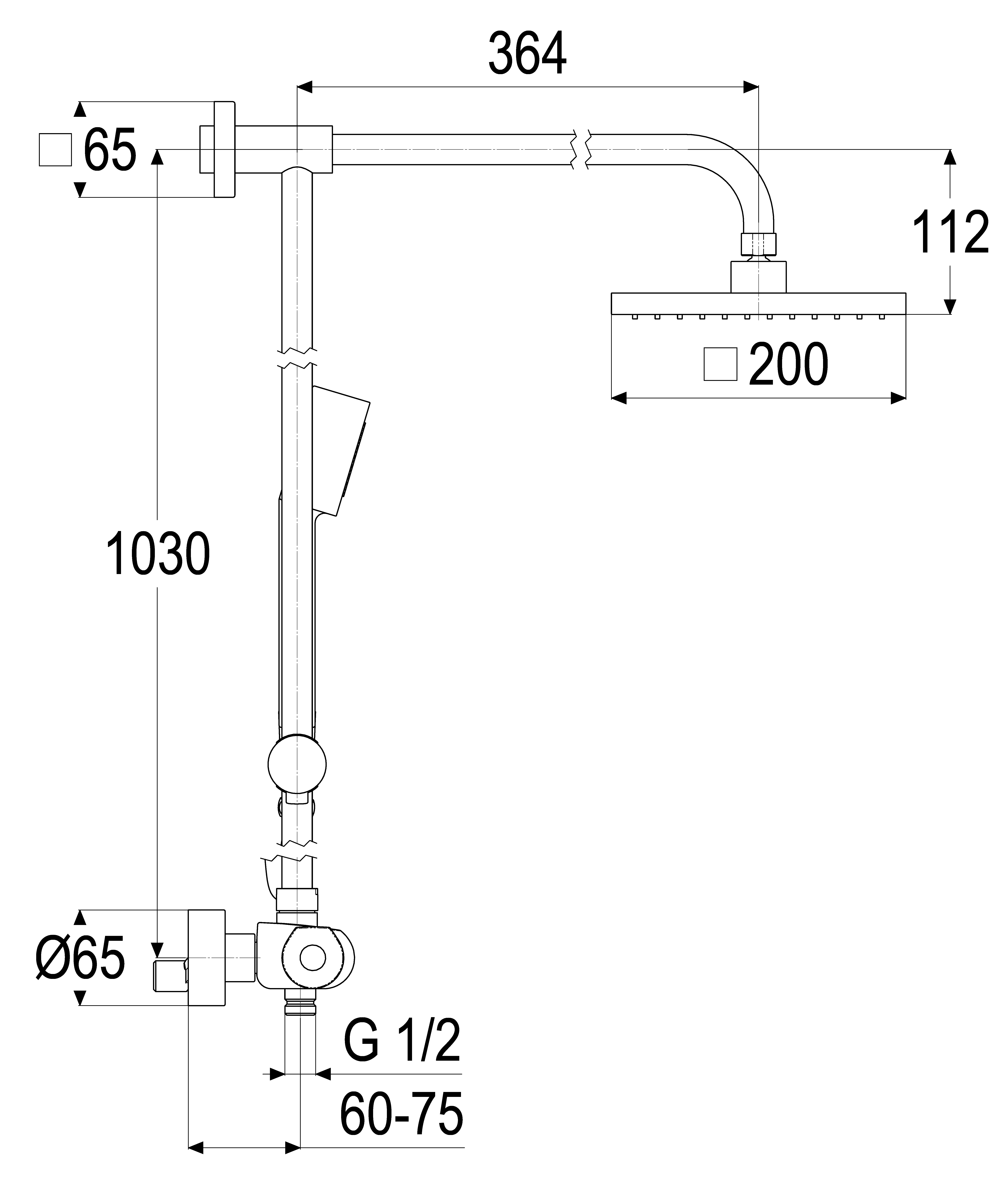

Dimensioned drawing
