Note: We reserve the right to make technical changes that serve progress at any time. Product images may differ from the original. Errors excepted.

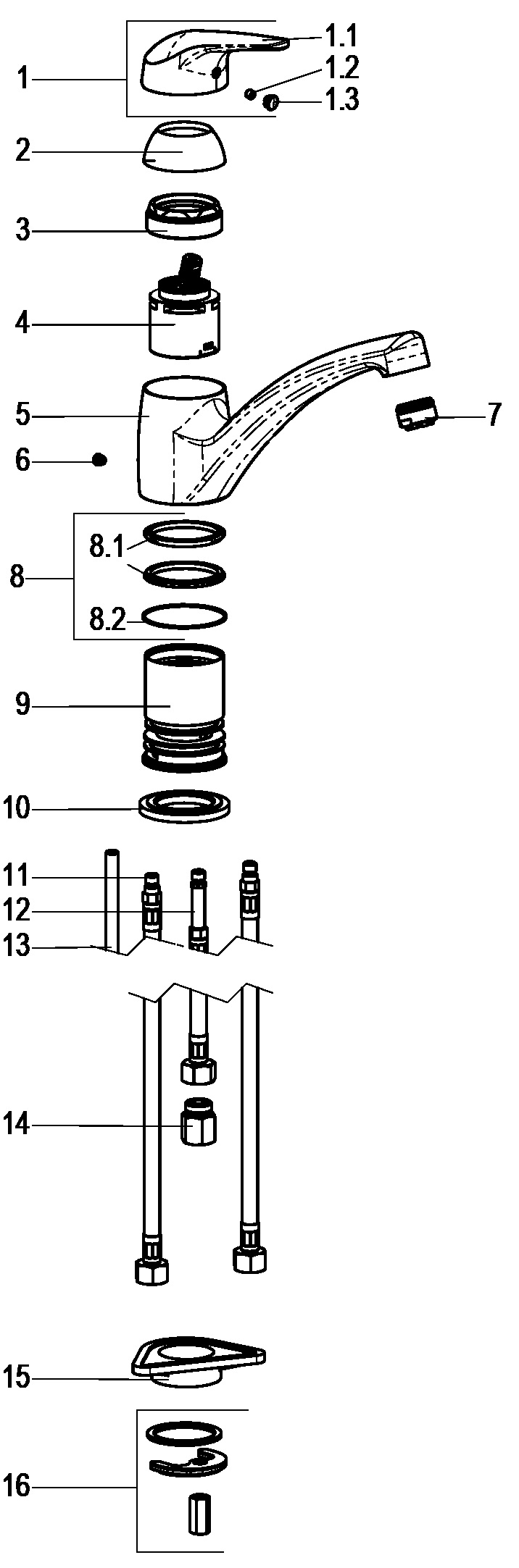

| Position | Description | Article-No |
| 01 | SH OPERATING LEVER | Z009268-00010 |
| 02 | SH ROSETTE M48 X 1 | Z009076-00010 |
| 03 | SH SCREW CONNECTION F. SCREW CAP | Z009078-00000 |
| 04 | SH CARTRIDGE FOR HIGH PRESSURE | Z000070-00000 |
| 06 | SH SCREW WITH STOP | Z000235-00000 |
| 07 | SH AERATOR LOW PRESSURE | Z013924-00010 |
| 08 | SH SEAL KIT FOR CARTRIDGE 44MM | Z001811-00000 |
| 10 | SH BASE TO 67802/803/832/834 | Z009101-00010 |
| 11 | SH FLEXIBLE HOSE M8 X 1 – 3/8" | Z009177-00000 |
| 12 | SH FLEXIBLE HOSE M8 X 1 – 3/8" | Z009099-00000 |
| 13 | SH THREAD BAR M8 X 130 | Z009072-00000 |
| 14 | SH FLOW RATE LIMITER 3/8" | Z019389-00000 |
| 16 | SH MOUNTING KIT M8 x 57MM | Z000606-00000 |

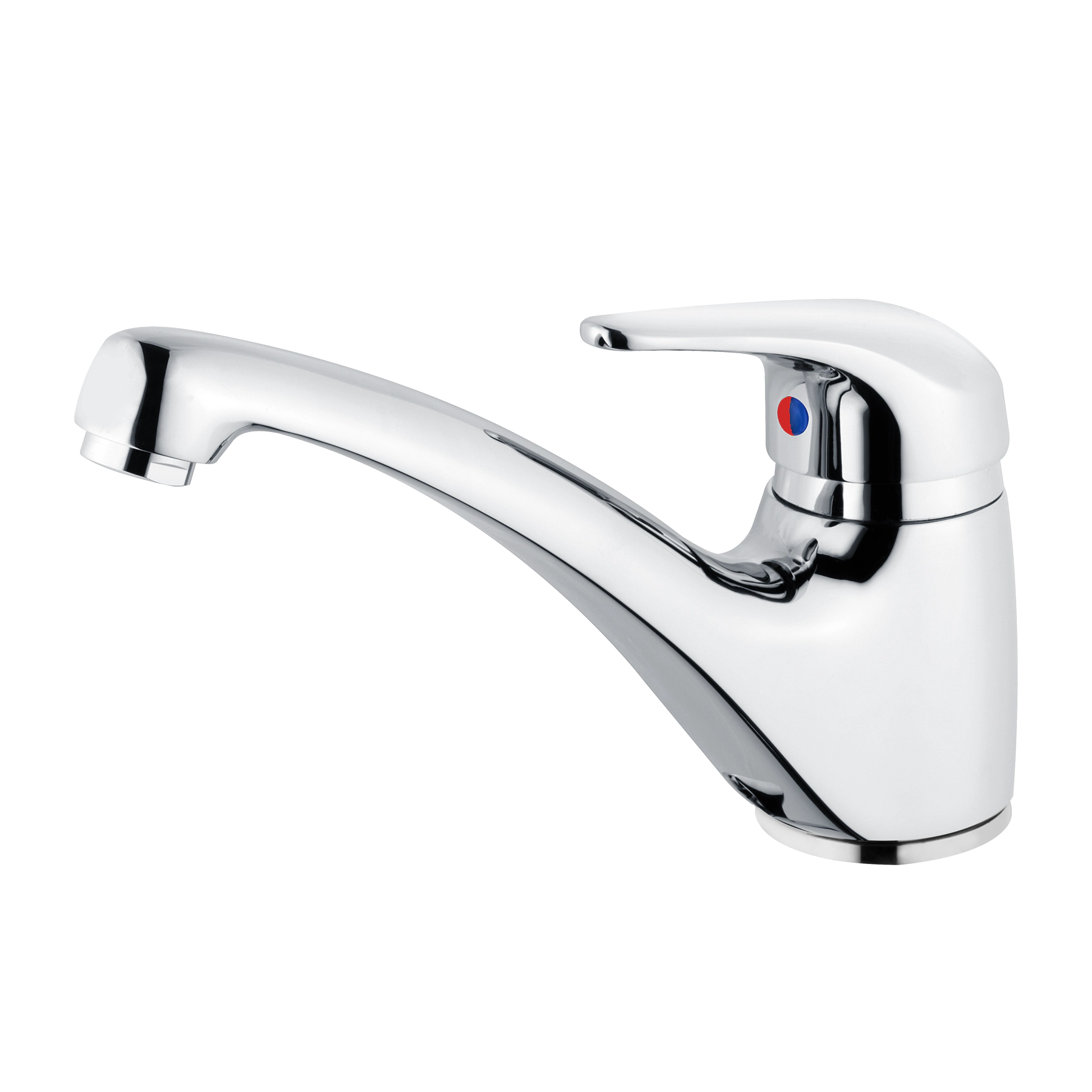

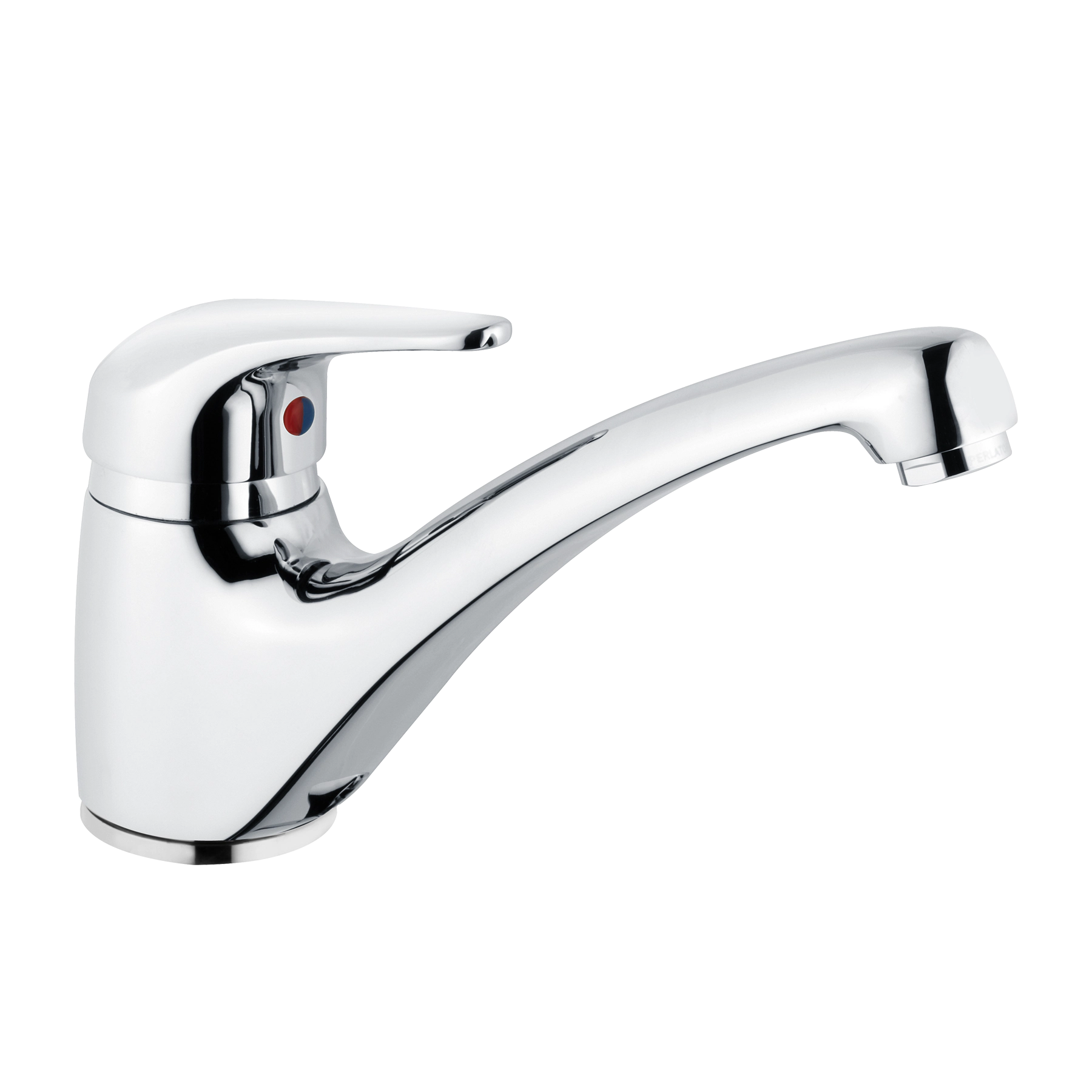

| Monolever-Kitchen mixer |
| Mounting kit |
| Flow rate limiter |
| Assembly instruction |
| Care instruction |
