Note: We reserve the right to make technical changes that serve progress at any time. Product images may differ from the original. Errors excepted.

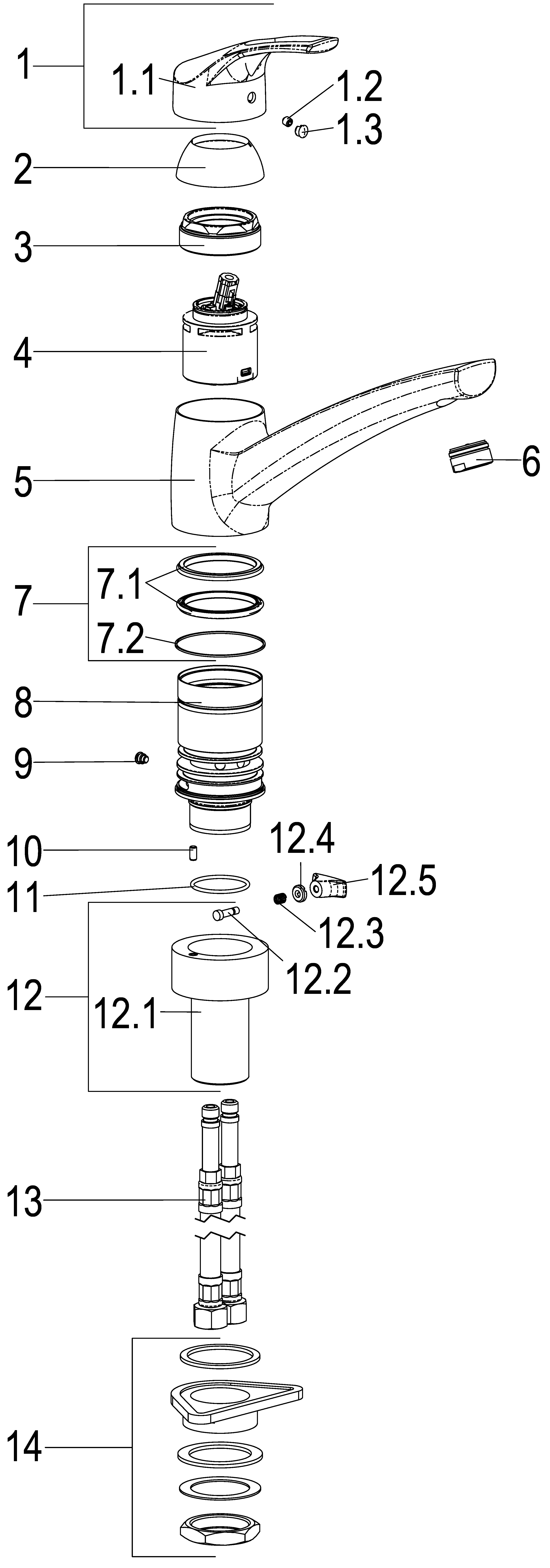

| Position | Description | Article-No |
| 01 | SH OPERATING LEVER ASCONA_1 | Z051980-00010 |
| 02 | SH ROSETTE M48 X 1 | Z009076-00010 |
| 03 | SH SCREW CONNECTION F. SCREW CAP | Z009078-00000 |
| 04 | SH CARTRIDGE FOR HIGH PRESSURE | Z000070-00000 |
| 06 | SH AERATOR CASCADE CLASS A | Z013974-00010 |
| 07 | SH SEAL KIT FOR CARTRIDGE 44MM | Z001811-00000 |
| 09 | SH SCREW WITH STOP | Z000235-00000 |
| 13 | SH FLEXIBLE HOSE M10 X 1 – 3/8" | Z009095-00000 |
| 14 | SH SCREW CONNECTION M34 X 1,5 | Z009196-00000 |
| Monolever-Kitchen mixer |
| Shaft screw connection kit |
| Assembly instruction |
| Care instruction |
