Item Properties
- Z051834-00010
- Heinrich Schulte
- Kitchen mixer low pressure
- ascona_1
- chrome
- reach 205 mm
- height to aerator 150 mm
- maximum height 195 mm
- cartridge 44 mm
with hot water and flow rate limiter - spout swivelling and extractable
protected against backflow - materials in accordance with German Drinking Water Regulations and FEA
- lever metal
- flexible hoses 3/8" DIN DVGW
- aerator low pressure
- single hole mounted
- for unpressurized water heaters
with metal shower hose - with quick fastening
with flow rate limiter 5 l/min

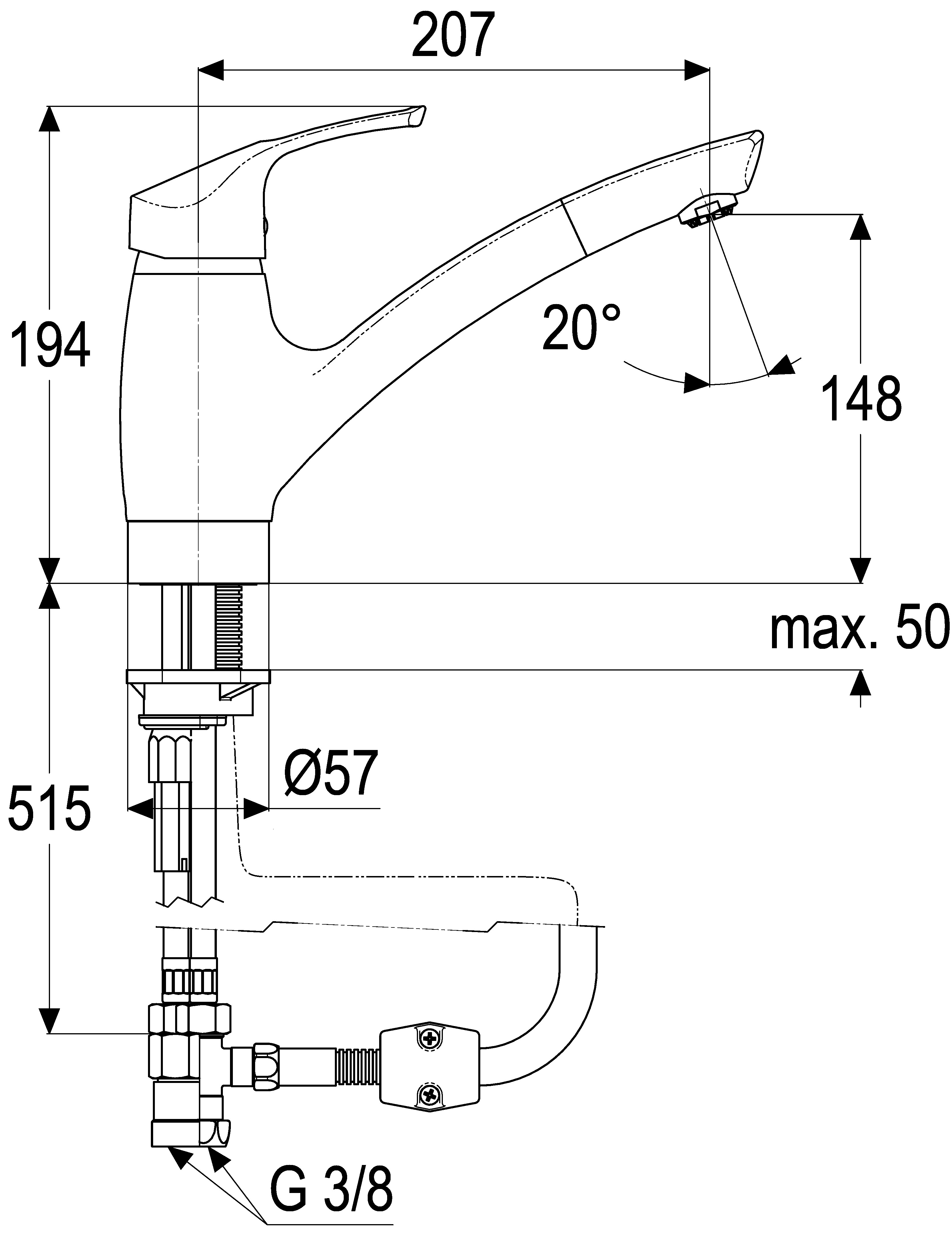

Dimensioned drawing
Durchflussdiagramm
