Note: We reserve the right to make technical changes that serve progress at any time. Product images may differ from the original. Errors excepted.

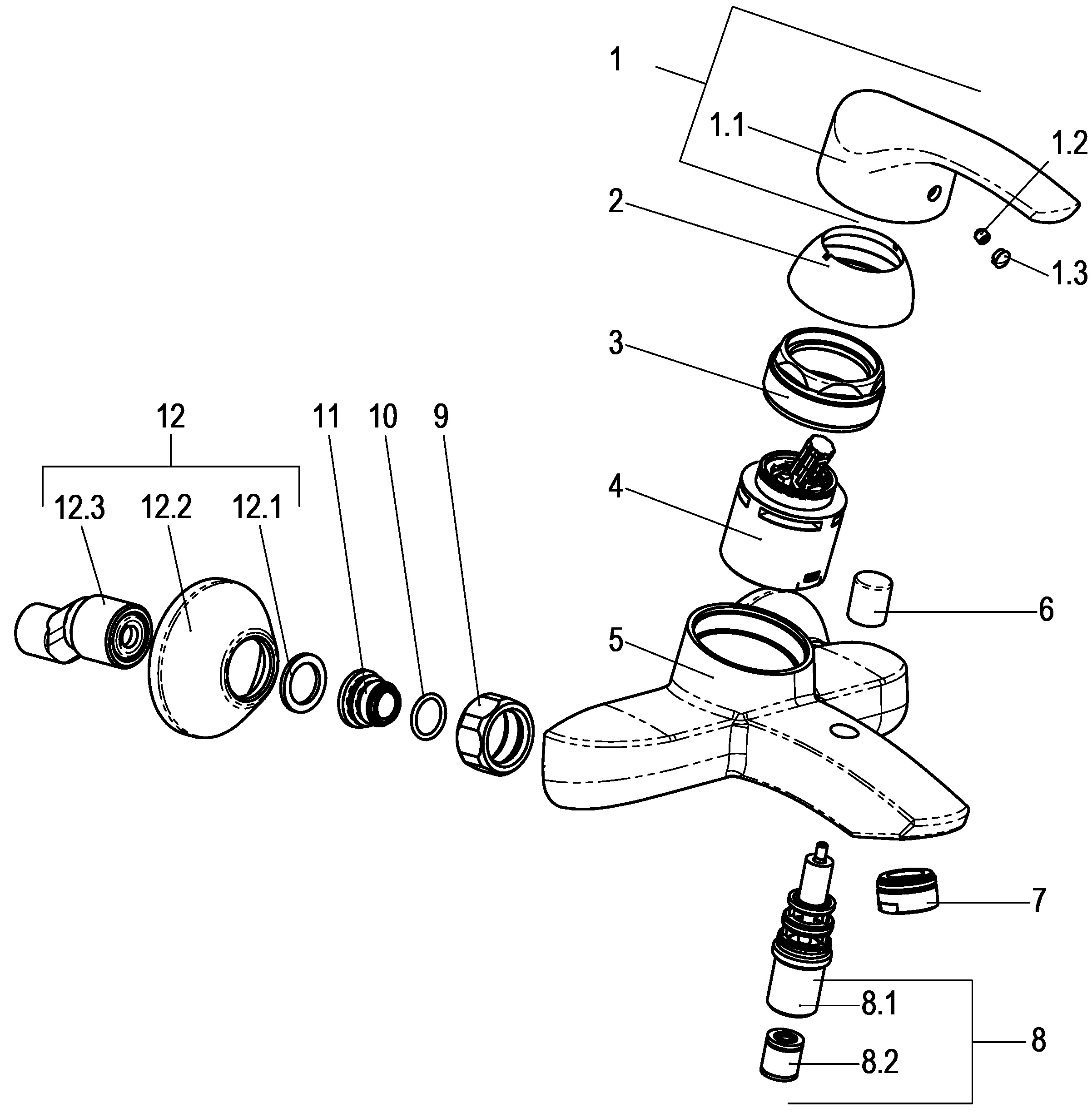

| Position | Description | Article-No |
| 01 | SH OPERATING LEVER ASCONA_1 | Z051970-00010 |
| 02 | SH ROSETTE M48 X 1 | Z009076-00010 |
| 03 | SH SCREW CONNECTION F. SCREW CAP | Z009078-00000 |
| 04 | SH CARTRIDGE FOR HIGH PRESSURE | Z000070-00000 |
| 06 | SH DIVERTER KNOB TO DIVERTER | Z009128-00010 |
| 07 | SH AERATOR CASCADE CLASS B | Z013972-00010 |
| 08 | SH EXPOSED DIVERTER LINE 50/51/66 | Z009149-00010 |
| 09 | SH WALL CONNECTION NUT 3/4" | Z000144-00010 |
| 11 | SH CONNECTION NIPPLE WITH O-RING | Z000147-00000 |
| 12 | SH S-CONNECTOR 1/2" X 3/4" | Z012028-00010 |

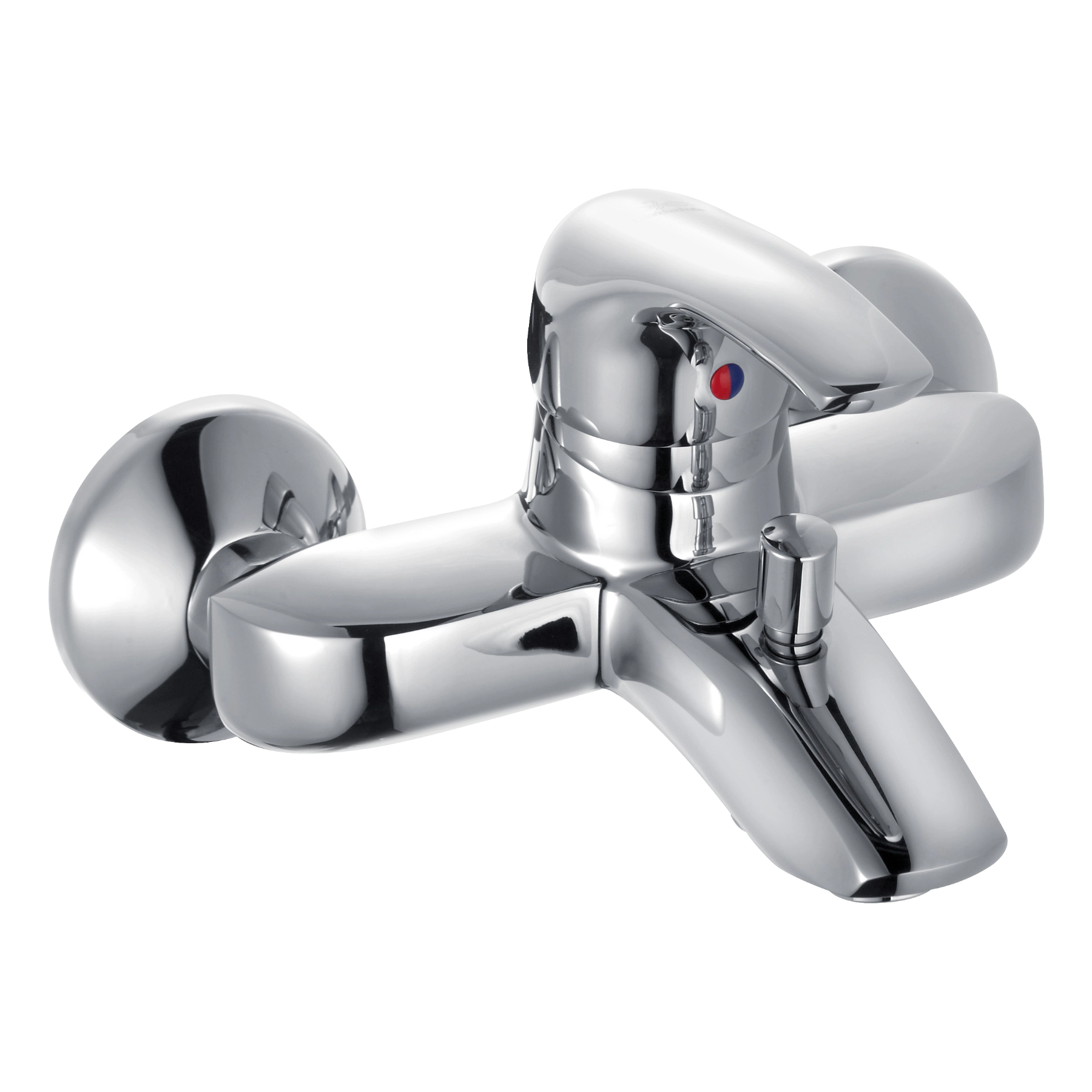

| Monolever-Bath shower mixer |
| Rosettes |
| S-connectors |
| Assembly instruction |
| Care instruction |
