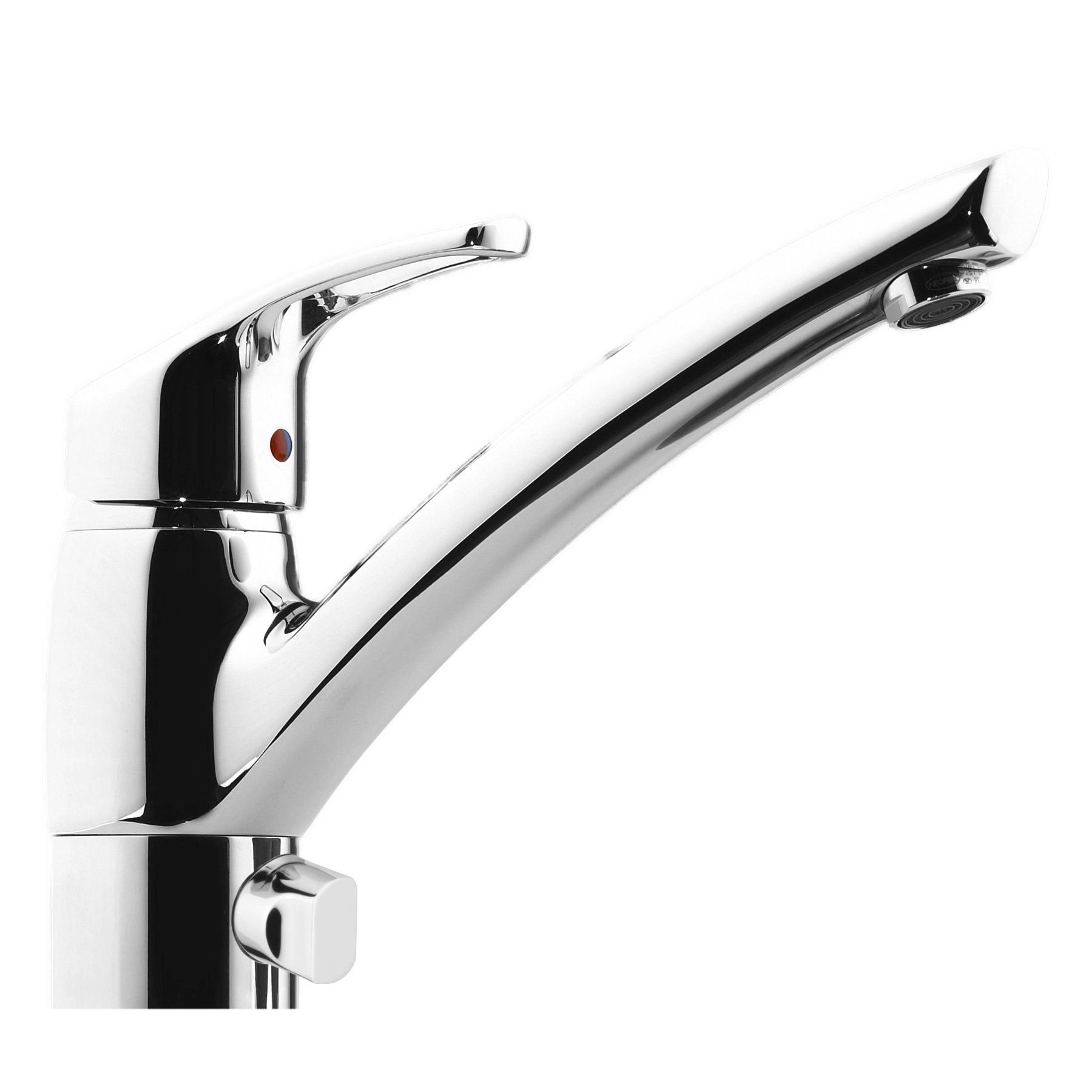

ascona_1 Kitchen mixer low pressure with appliance connection

ascona_1 Kitchen mixer low pressure with appliance connection

Note: We reserve the right to make technical changes that serve progress at any time. Product images may differ from the original. Errors excepted.

Loading...

Item Properties

Z051837-00010
Heinrich Schulte
Kitchen mixer low pressure
ascona_1
chrome
reach 200 mm
height to aerator 160 mm
maximum height 185 mm
cartridge 44 mm
with hot water and flow rate limiter
spout swivelling
materials in accordance with German Drinking Water Regulations and FEA
lever metal
flexible hoses 3/8" DIN DVGW
aerator low pressure
with appliance connection
for unpressurized water heaters
with quick fastening
with flow rate limiter 5 l/min

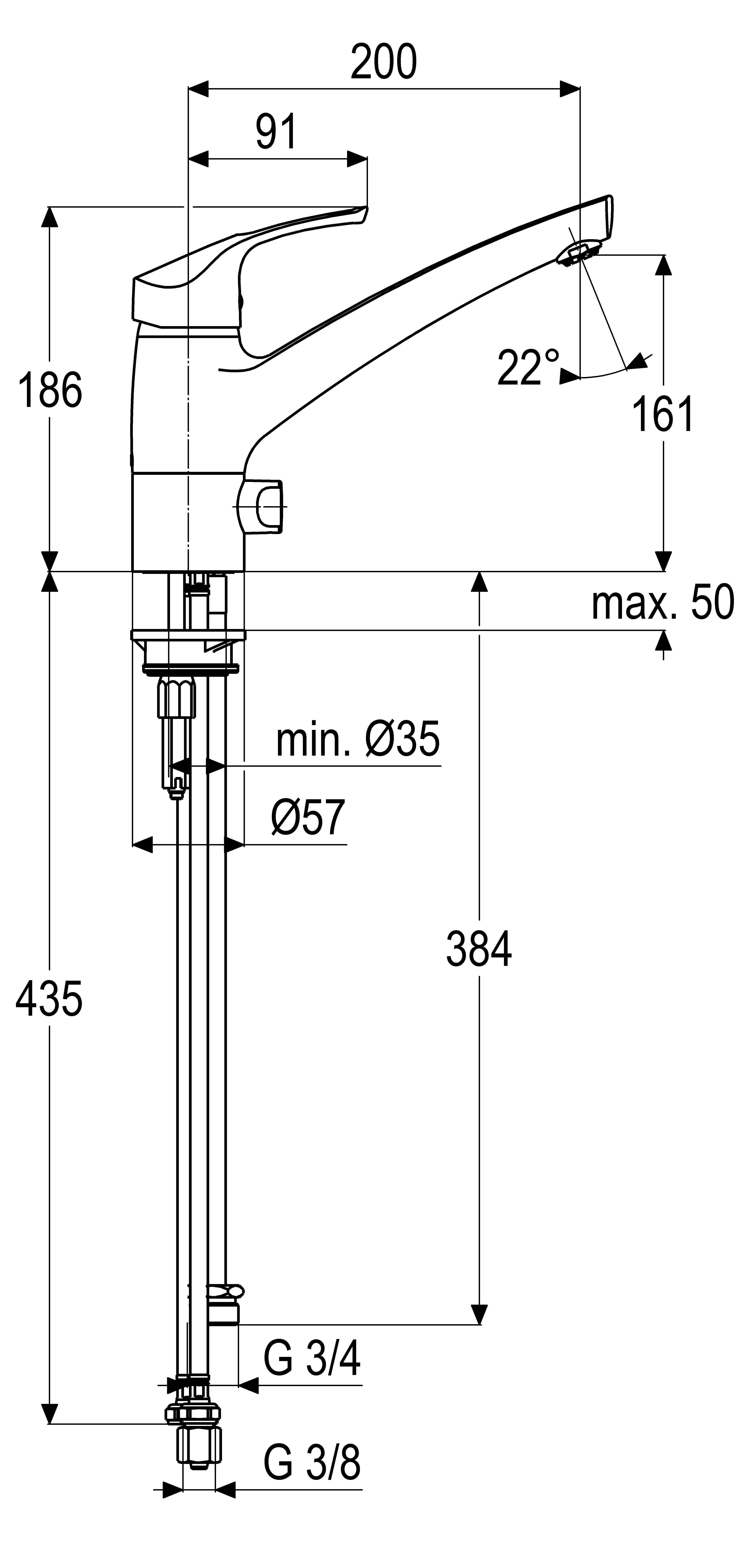

Dimensioned drawing

Durchflussdiagramm

Downloads

PDF Montageanleitung

PDF Product data sheet

Exploded drawing

Spare parts list

Position	Description	Article-No
01	SH OPERATING LEVER ASCONA_1	Z051980-00010
02	SH ROSETTE M48 X 1	Z009076-00010
03	SH SCREW CONNECTION F. SCREW CAP	Z009078-00000
04	SH CARTRIDGE FOR HIGH PRESSURE	Z000070-00000
06	SH SCREW WITH STOP	Z000235-00000
07	SH AERATOR LOW PRESSURE	Z013924-00010
08	SH SEAL KIT FOR CARTRIDGE 44MM	Z001811-00000
09	SH APPLIANCE CONNECTION BASE	Z064890-00010
10	SH SHUT-OFF HEAD PART M20 X 1	Z009064-00000
12	SH THREAD BAR M8 X 130	Z009072-00000
14	SH FLEXIBLE HOSE M10 X 1 – 3/8"	Z009141-00000
15	SH FLEXIBLE HOSE M8 X 1 – 3/8"	Z009075-00000
16	SH FLOW RATE LIMITER 3/8"	Z019389-00000
17	SH QUICK FASTENING COMPLETE M8	Z009295-00000

The following components are included in the scope of delivery:

Monolever-Kitchen mixer

Mounting kit

T-Piece

Flow rate limiter

Assembly instruction

Care instruction
