Item Properties
- Z069065-00280
- Heinrich Schulte
- Wash basin mixer low pressure
- alpha_400
- matt black
- reach 100 mm
- height to aerator 90 mm
- maximum height 155 mm
- cartridge 44 mm
with hot water and flow rate limiter - materials in accordance with German Drinking Water Regulations and FEA
- lever metal
- flexible hoses 3/8" DIN DVGW
- aerator low pressure
Dropless - single hole mounted
- for unpressurized water heaters
- with pop-up waste 1 1/4"
with mounting kit
with flow rate limiter 5 l/min

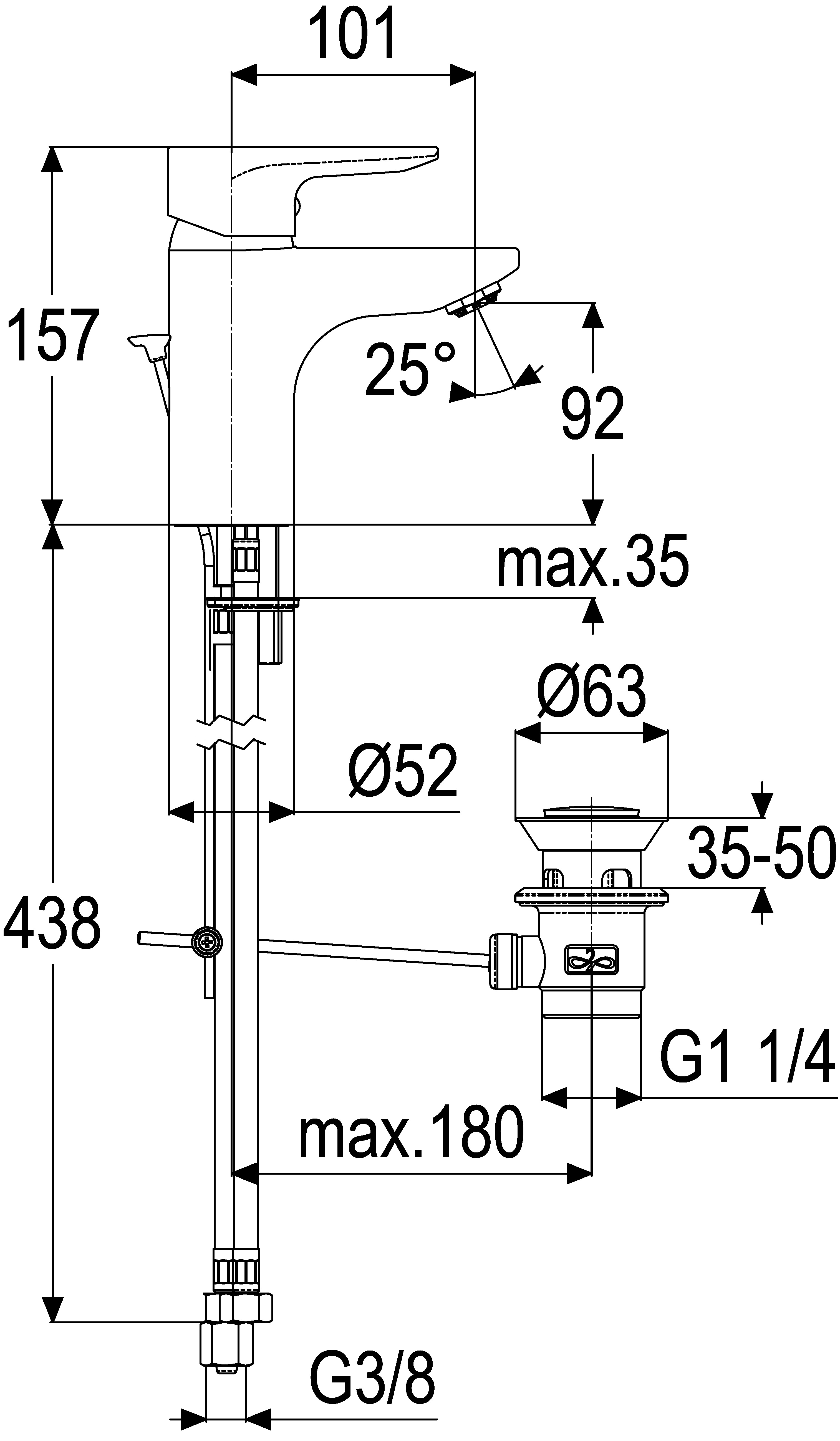

Dimensioned drawing
Durchflussdiagramm
