Note: We reserve the right to make technical changes that serve progress at any time. Product images may differ from the original. Errors excepted.

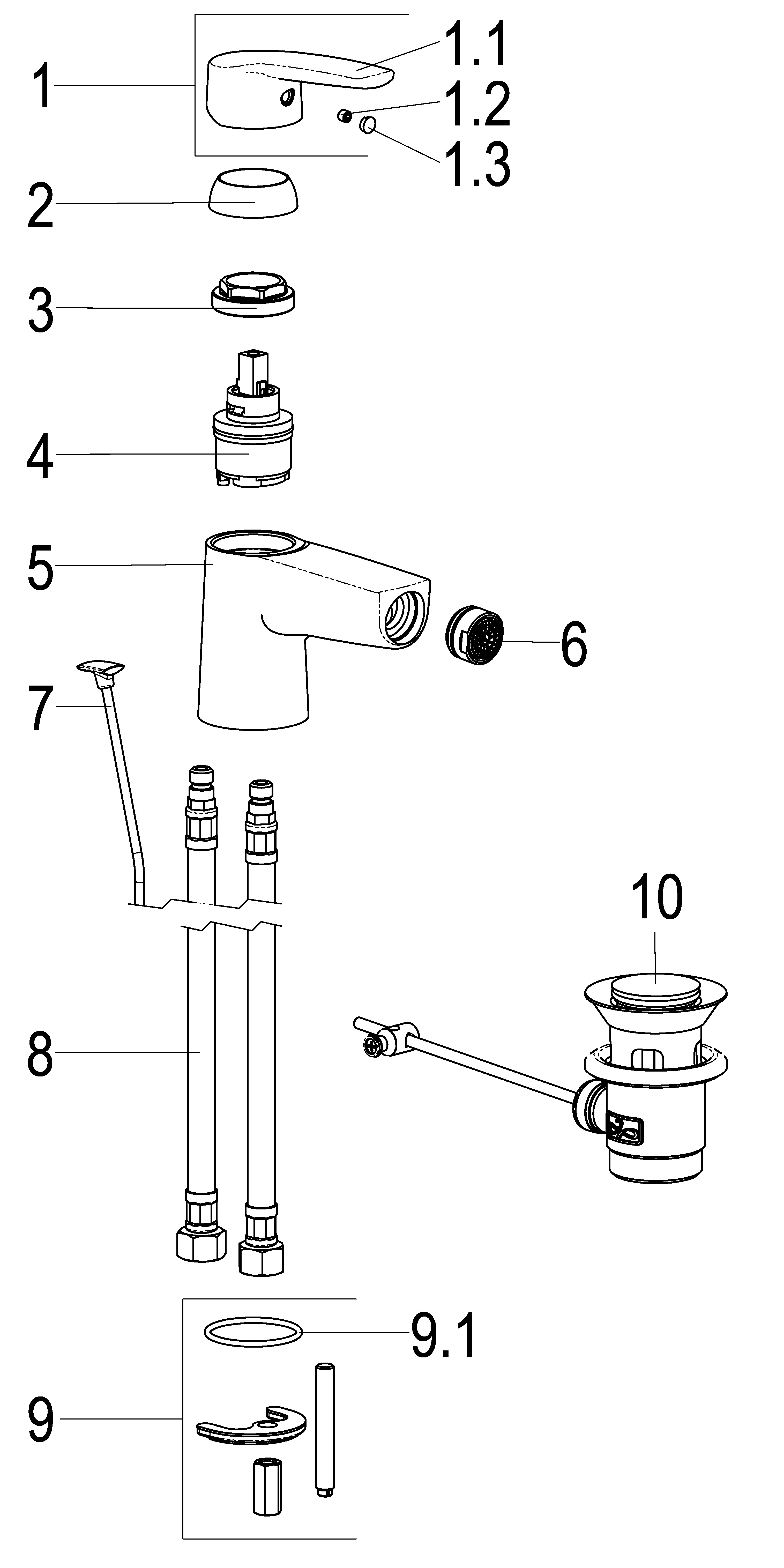

| Position | Description | Article-No |
| 01 | SH OPERATING LEVER ALPHA_100 | Z056990-00010 |
| 03 | SH SCREW CONNECTION M37 X 1,5 | Z009472-84000 |
| 04 | SH CARTRIDGE FOR HIGH PRESSURE | Z009203-00001 |
| 06 | SH SSR SWIVEL AERATOR CL. A | Z013959-00010 |
| 07 | SH PULL ROD WITH KNOB | Z009187-00010 |
| 08 | SH FLEXIBLE HOSE M10 X 1 – 3/8" | Z009143-00000 |
| 09 | SH MOUNTING KIT M8 x 57MM | Z000606-00000 |
| 10 | SH POP-UP WASTE COMPLETE | Z001128-00010 |

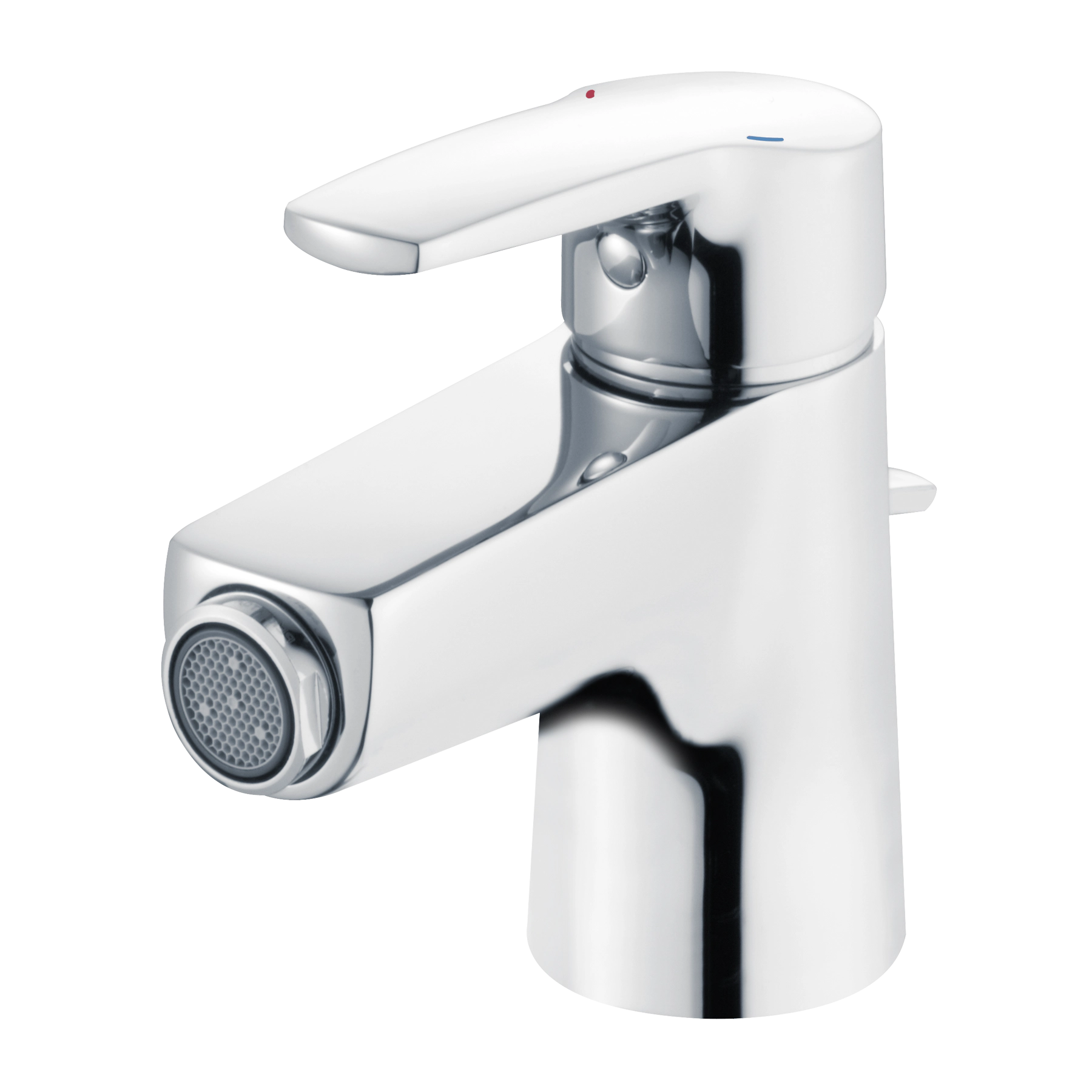

| Monolever-Bidet mixer |
| Mounting kit |
| Pop-up waste with pull rod |
| Assembly instruction |
| Care instruction |
