Item Properties
- Z056932-00010
- Heinrich Schulte

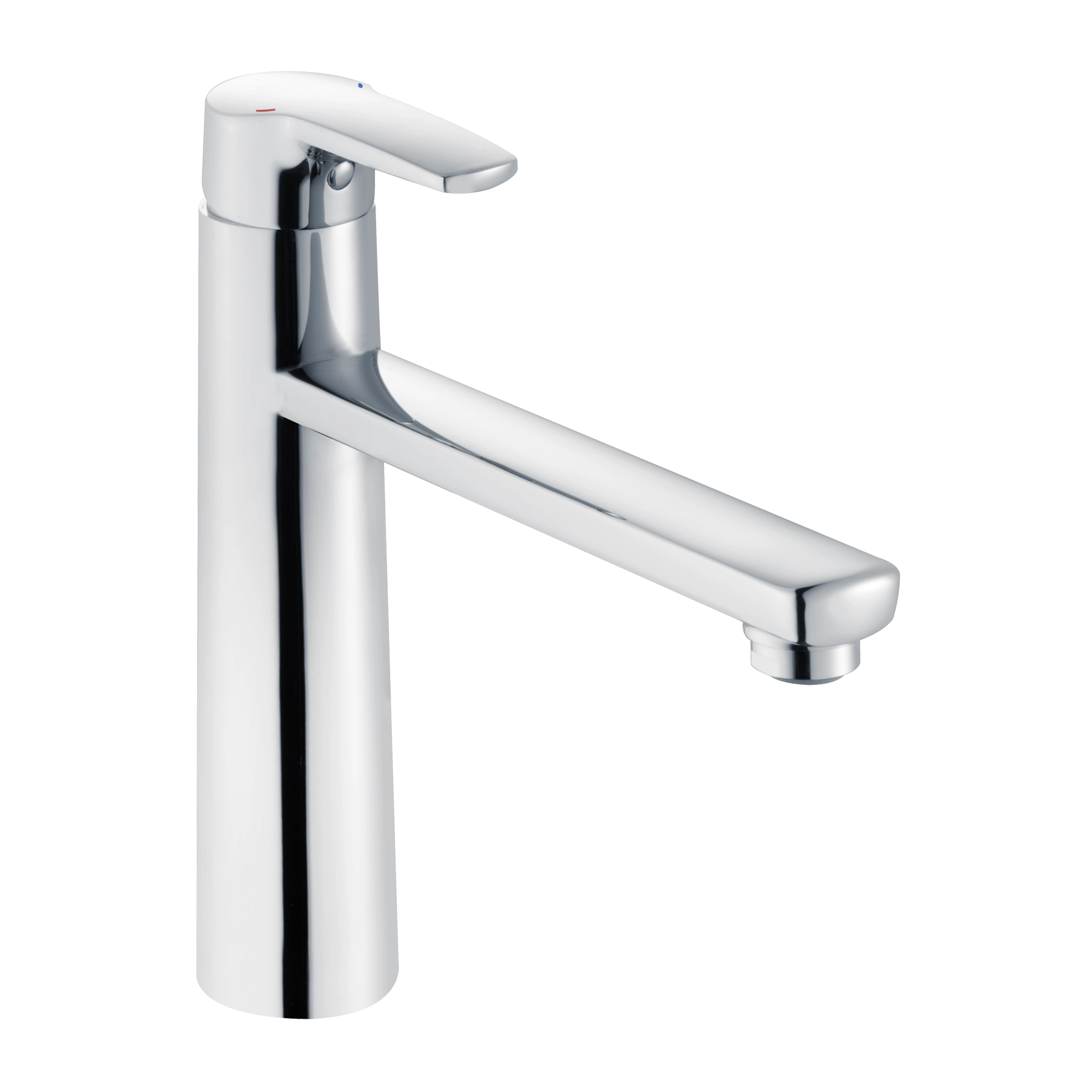

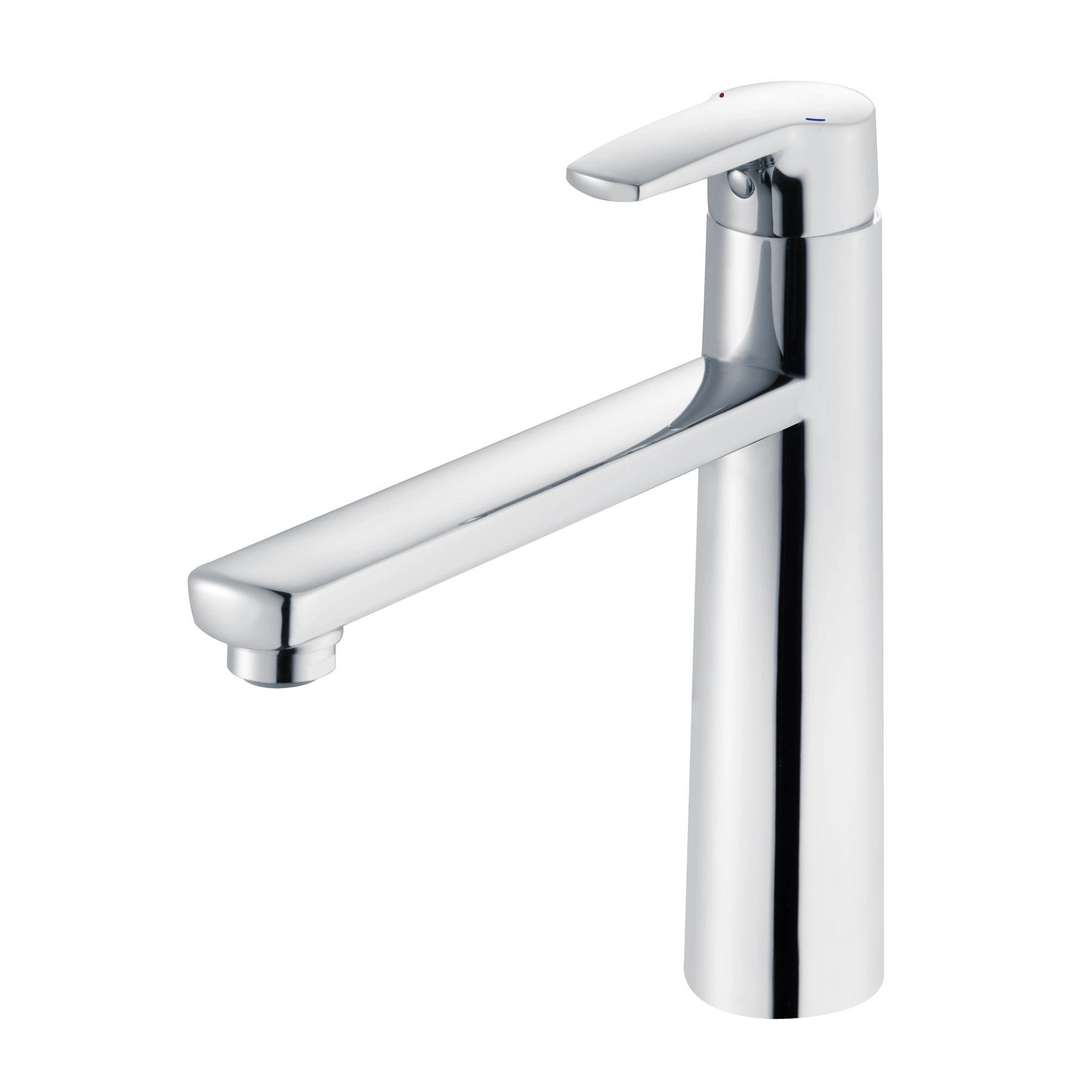

- Kitchen mixer low pressure
- alpha_350
- chrome
- reach 205 mm
- height to aerator 135 mm
- maximum height 225 mm
- cartridge 35 mm
with hot water and flow rate limiter - spout swivelling
- materials in accordance with German Drinking Water Regulations and FEA

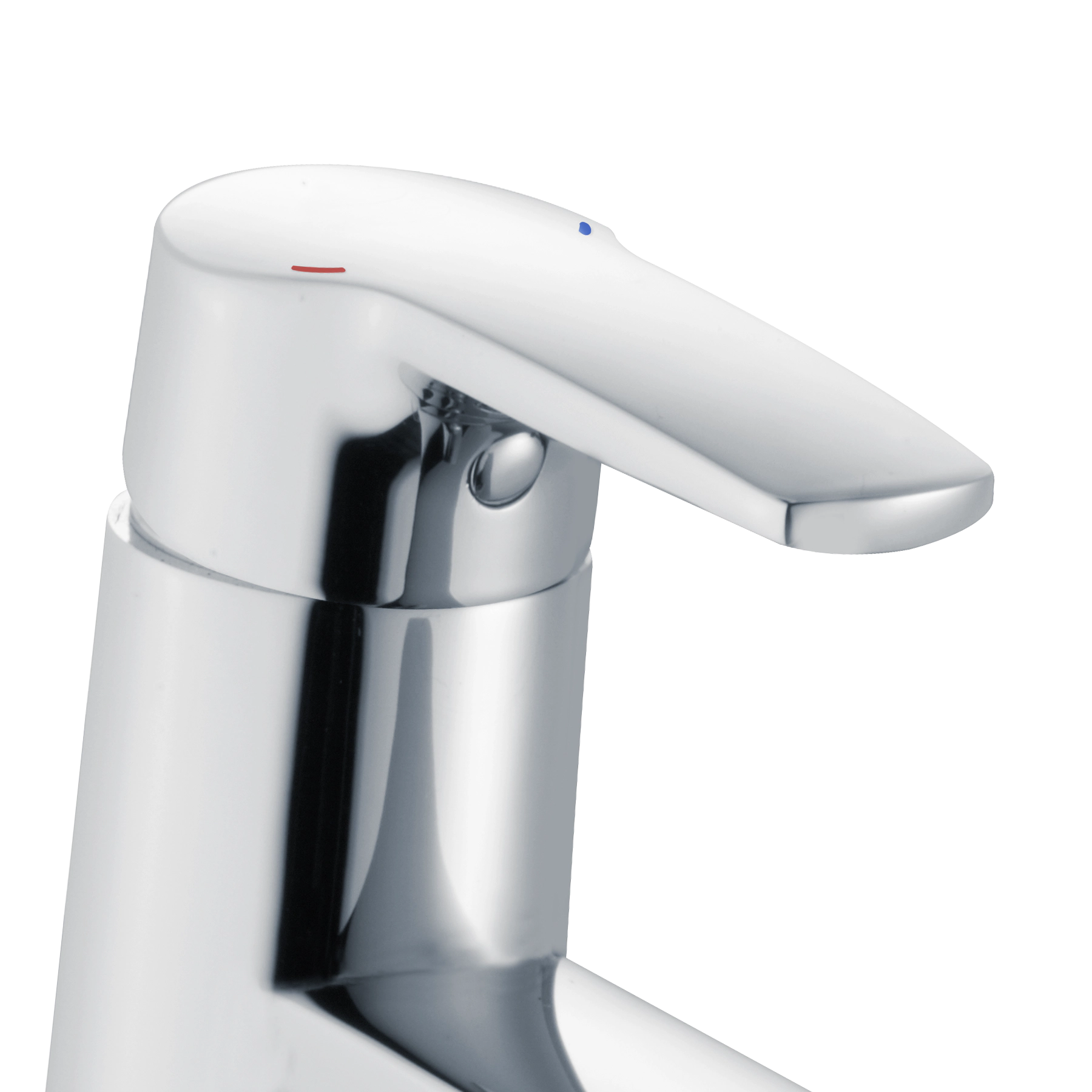

- lever metal
- flexible hoses 3/8" DIN DVGW
- aerator low pressure
- single hole mounted
- with reinforced cartridge screw connection
- with quick fastening
with flow rate limiter 5 l/min
with base

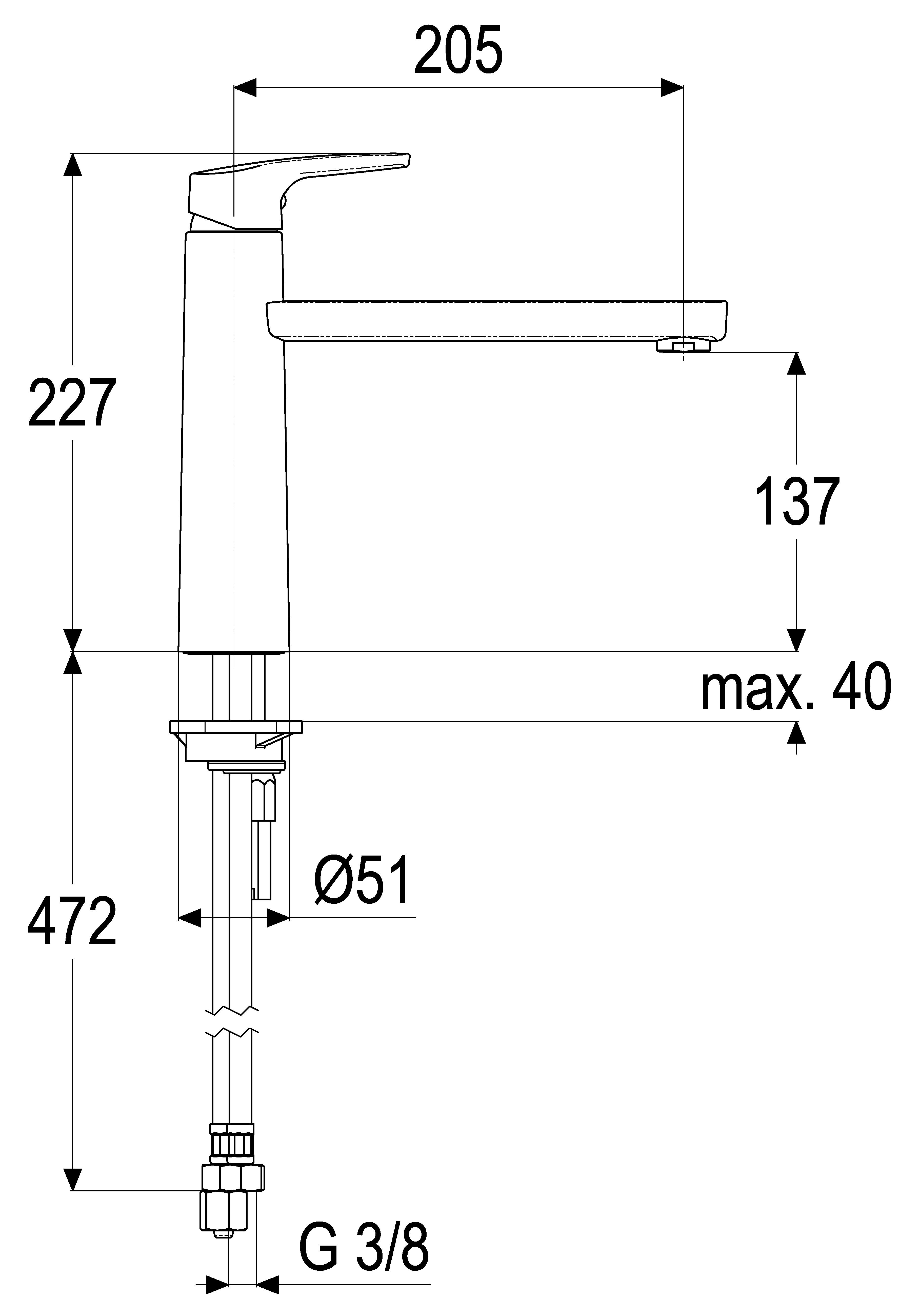

Dimensioned drawing
Durchflussdiagramm
