Note: We reserve the right to make technical changes that serve progress at any time. Product images may differ from the original. Errors excepted.
| Position | Description | Article-No |
| 01 | SH OPERATING LEVER ALPHA | Z069991-00010 |
| 02 | SH ROSETTE M48 X 1 | Z009076-00010 |
| 03 | SH SCREW CONNECTION F. SCREW CAP | Z009078-00000 |
| 04 | SH CARTRIDGE FOR HIGH PRESSURE | Z000070-00000 |
| 08 | SH SSR SWIVEL AERATOR CL. A | Z013959-00010 |
| 09 | SH PULL ROD WITH KNOB | Z009187-00010 |
| 10 | SH FLEXIBLE HOSE M10 X 1 – 3/8" | Z009193-00000 |
| 11 | SH POP-UP WASTE COMPLETE | Z001128-00010 |
| 12 | MOUNTING KIT M8 X 57MM | Z000616-00000 |

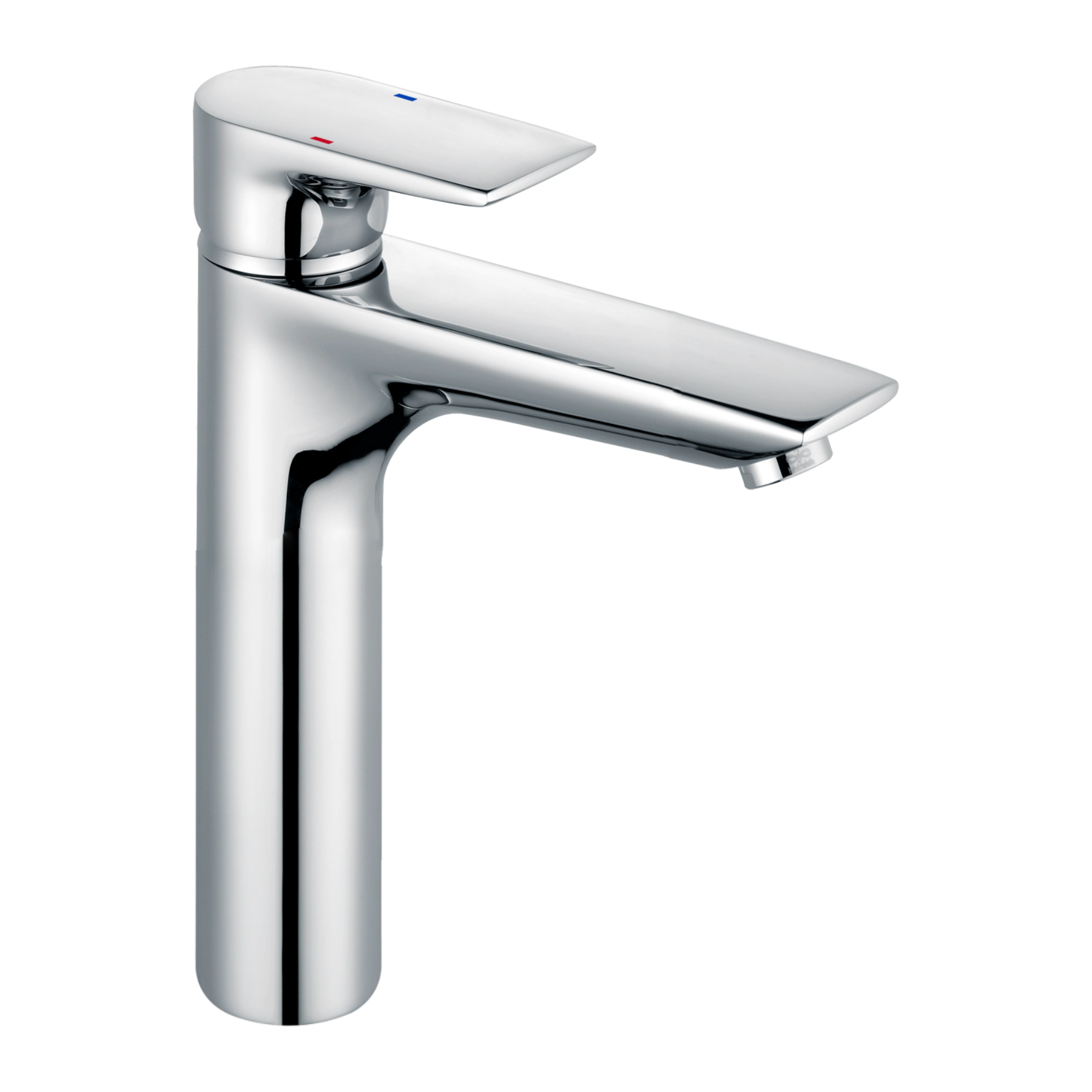

| Monolever-Wash basin mixer |
| Mounting kit |
| Pop-up waste with pull rod |
| Assembly instruction |
