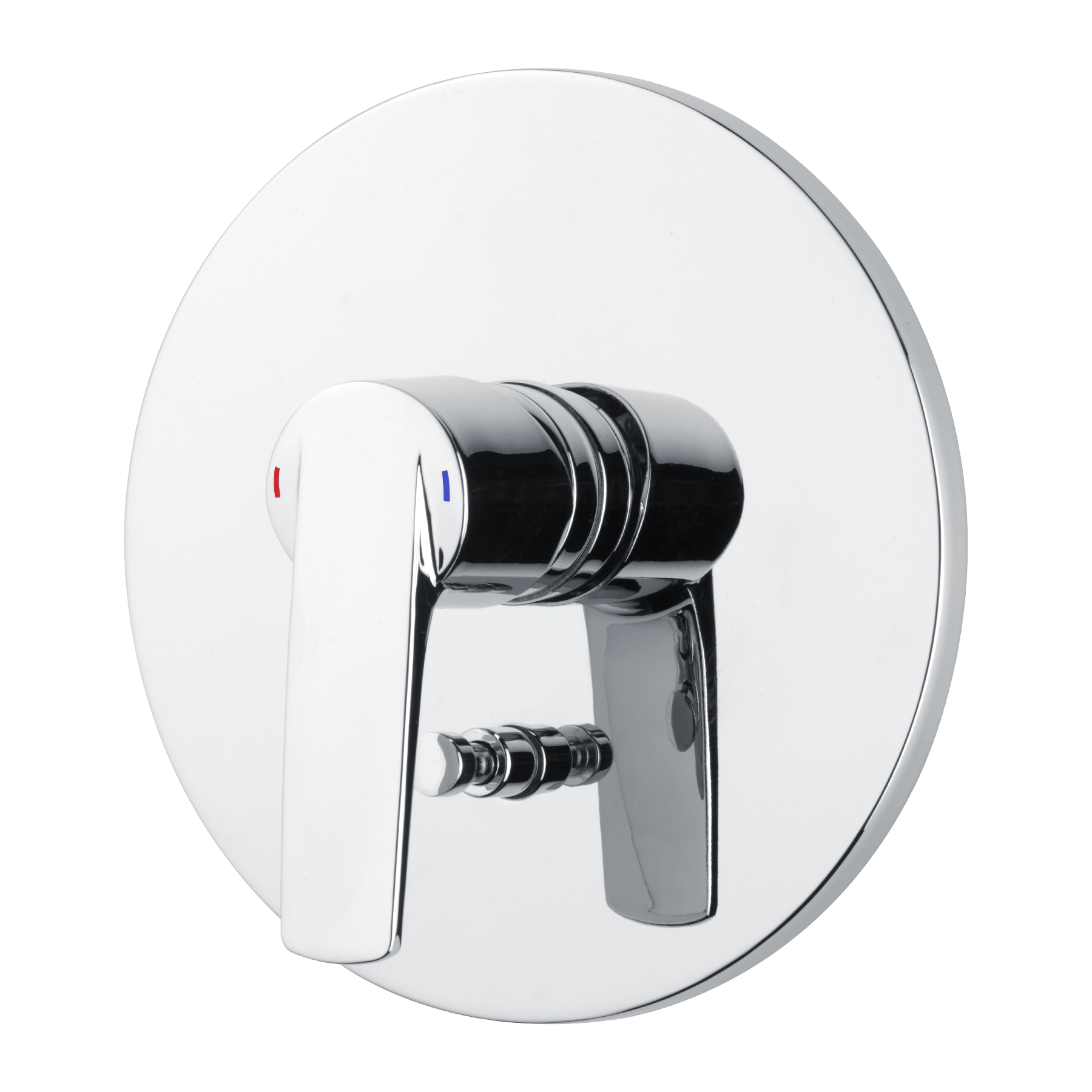

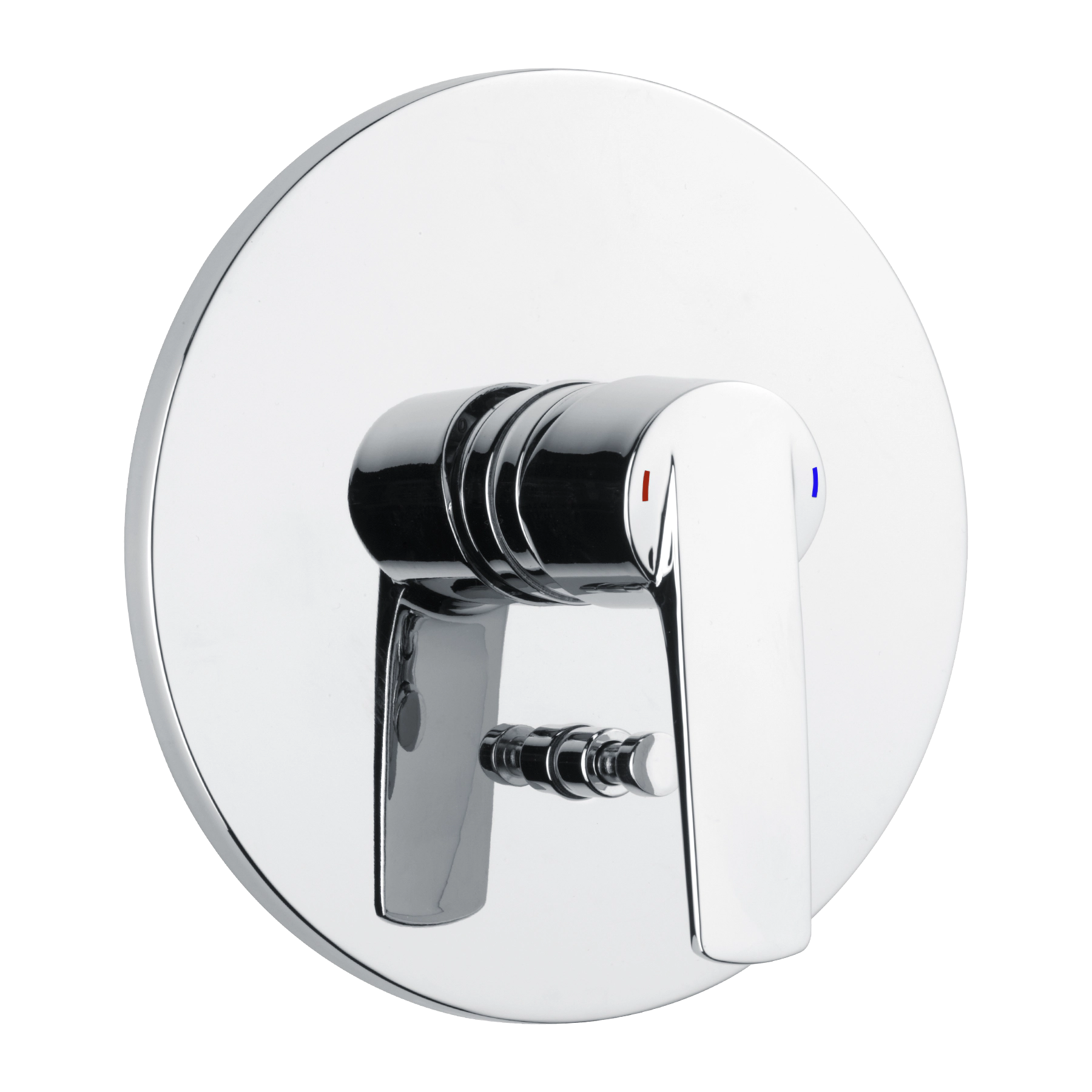

alpha_300 Finishing set bath mixer for Tec-box

alpha_300 Finishing set bath mixer for Tec-box – Bild 2

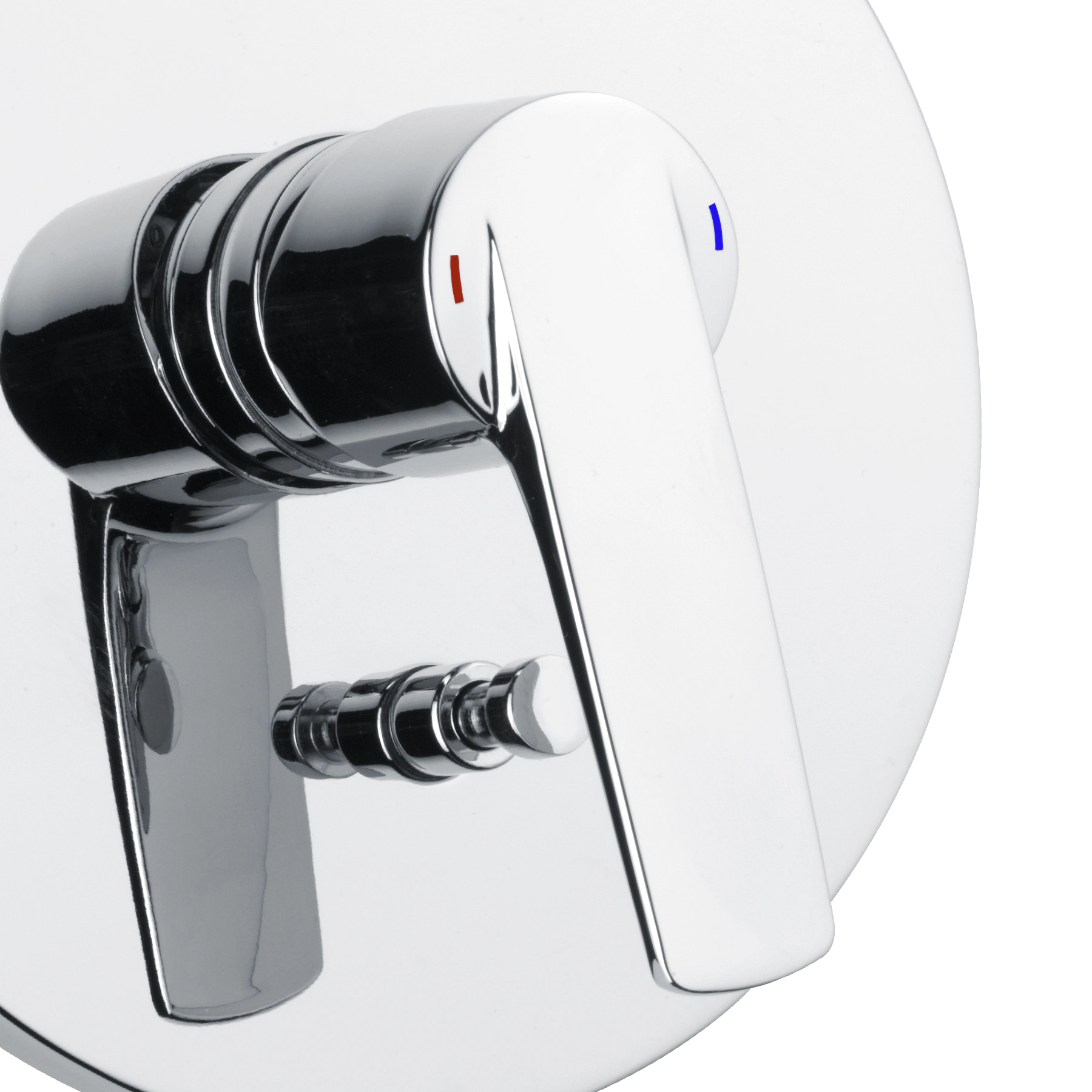

alpha_300 Finishing set bath mixer for Tec-box – Bild 3

alpha_300 Finishing set bath mixer for Tec-box

Note: We reserve the right to make technical changes that serve progress at any time. Product images may differ from the original. Errors excepted.

Loading...

Item Properties

Z059498-00010
Heinrich Schulte
Finishing set bath mixer
alpha_300
chrome
diameter cover plates 180 mm
cartridge 35 mm
with hot water limiter
diverter automatic
materials in accordance with German Drinking Water Regulations and FEA
lever metal
noise level test mark PA-IX 7390/IIBC
mounting with Tec-box
with installation depth compensation
control body +/- 18 degree adjustable
protected against backflow
optional accessories with anti vacuum device

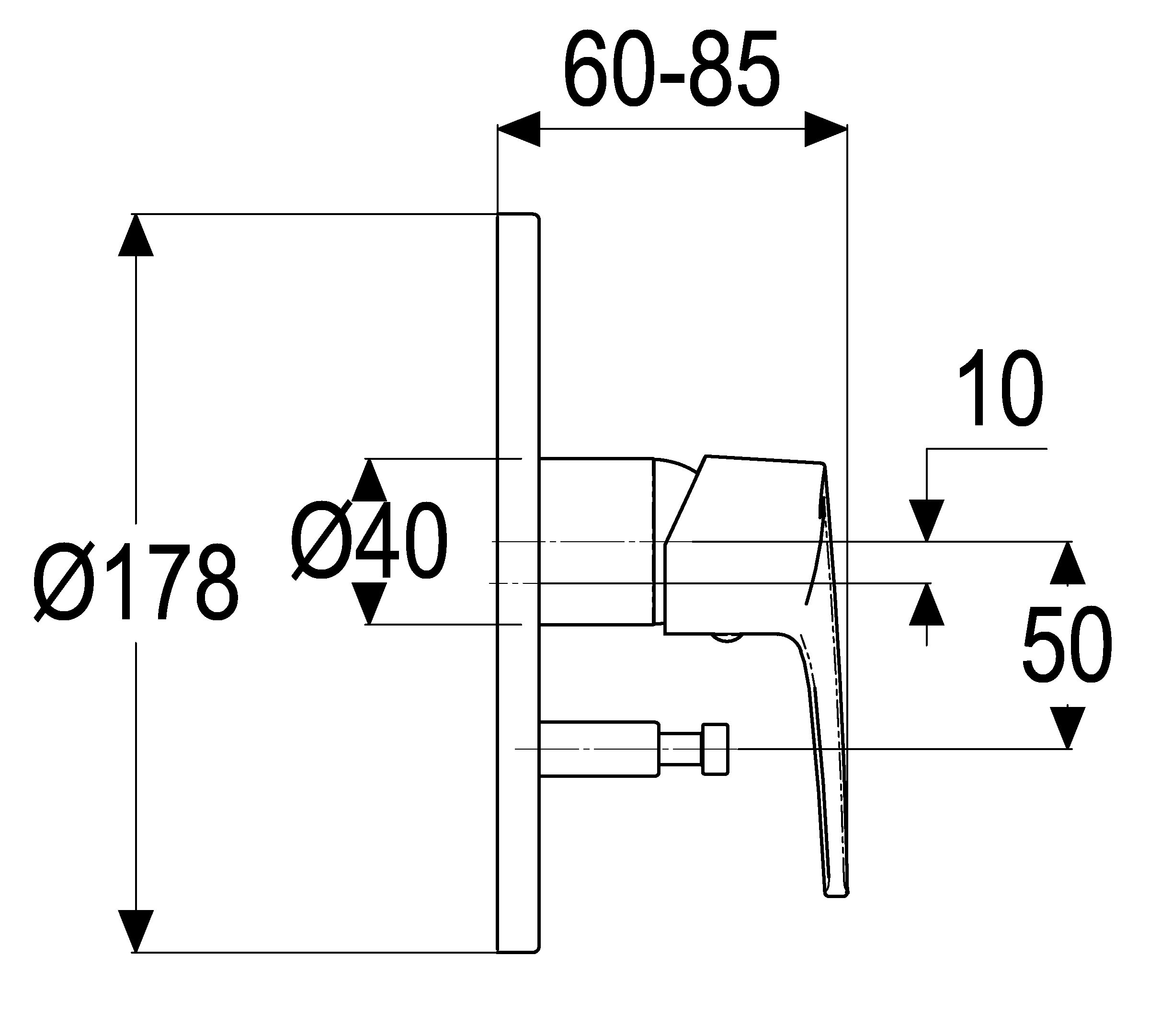

Dimensioned drawing

Durchflussdiagramm

Downloads

PDF Montageanleitung

PDF Product data sheet

Exploded drawing

Spare parts list

Position	Description	Article-No
01	SH OPERATING LEVER ALPHA_300	Z059990-00010
02	SH ROSETTE FOR CONC. BATH MIXER	Z069498-50010
04	SH COUNTERSUNK M5 x 40	Z000073-00000
06	SH ROSETTE M37 X 1,5 / D:39,7X12	Z009110-00010
07	SH SCREW CONNECTION TO LINE 62	Z009111-00000
08	SH CARTRIDGE FOR HIGH PRESSURE	Z009200-00000
13	SH CHECK VALVE	Z028910-00000
18	SH CONC. DIVERTER FOR TEC-BOX	Z009483-00010
19	SH THREADED PLUG M22x1	Z000184-00000
20	SH TUBE AERATOR FOR TEC-BOX	Z028900-00000

The following components are included in the scope of delivery:

Conc. Monolever-Bath shower mixer

Rosette

Lever

Screw set

Assembly instruction
