Item Properties
- Z058485-00000
- Heinrich Schulte
- Conc. body Tec-box_100 1/2"
- alpha_100
- thread connection 1/2"
- installation depth 70-95 mm
- cartridge 35 mm
with hot water limiter - materials in accordance with German Drinking Water Regulations and FEA
- suitable for conc. bath and shower mixer
- with installation depth compensation
sealing collar and noise isolation
with protection cap
protected against backflow
with distance frame - optional accessories with spacer sleeves for rear panel installation

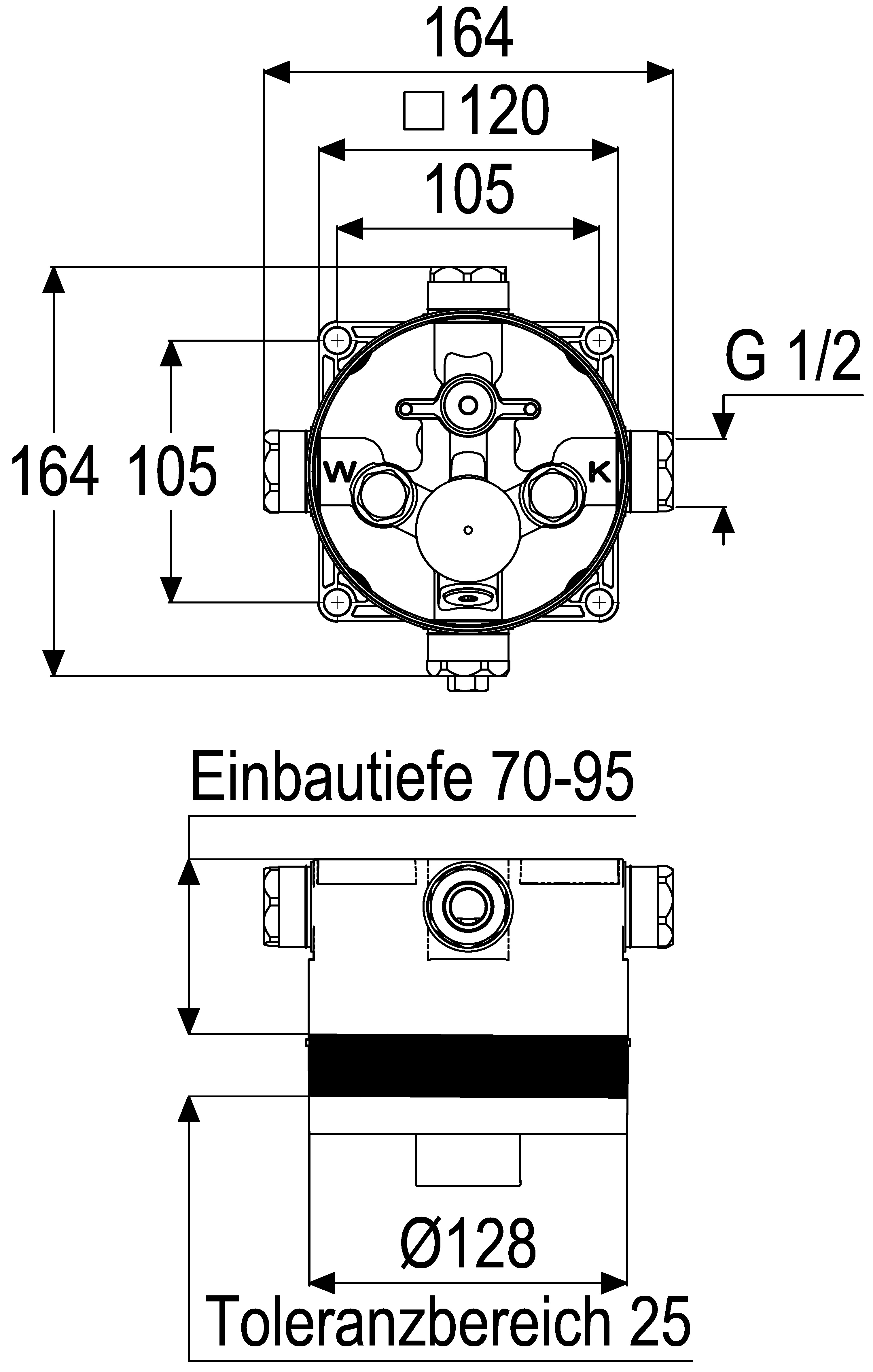

Dimensioned drawing
