Note: We reserve the right to make technical changes that serve progress at any time. Product images may differ from the original. Errors excepted.

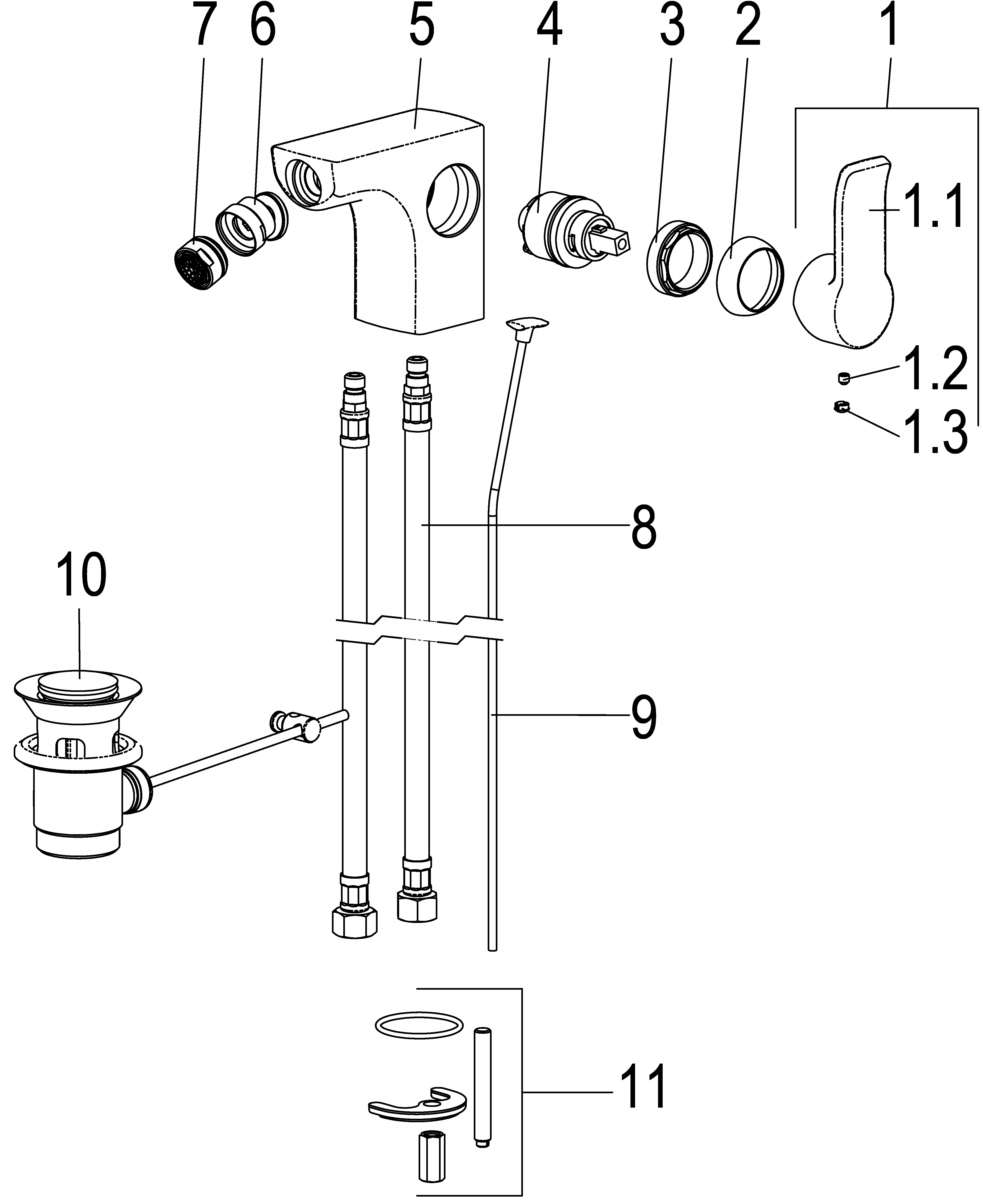

| Position | Description | Article-No |
| 01 | SH OPERATING L. ALPHA-STYLE_600 | Z055990-00011 |
| 02 | SH ROSETTE M37 X 1,5 / D:39,7X12 | Z009110-00010 |
| 03 | SH SCREW CONNECTION TO LINE 62 | Z009111-00000 |
| 04 | SH CARTRIDGE FOR HIGH PRESSURE | Z009203-00001 |
| 06 | SH AERATOR WITH BALL JOINT | Z013954-00010 |
| 08 | SH FLEXIBLE HOSE M10 X 1 – 3/8" | Z009143-00000 |
| 09 | SH PULL ROD WITH KNOB | Z009187-00010 |
| 10 | SH POP-UP WASTE POLISHED | Z001123-00010 |
| 11 | SH MOUNTING KIT M8 x 57MM | Z000606-00000 |

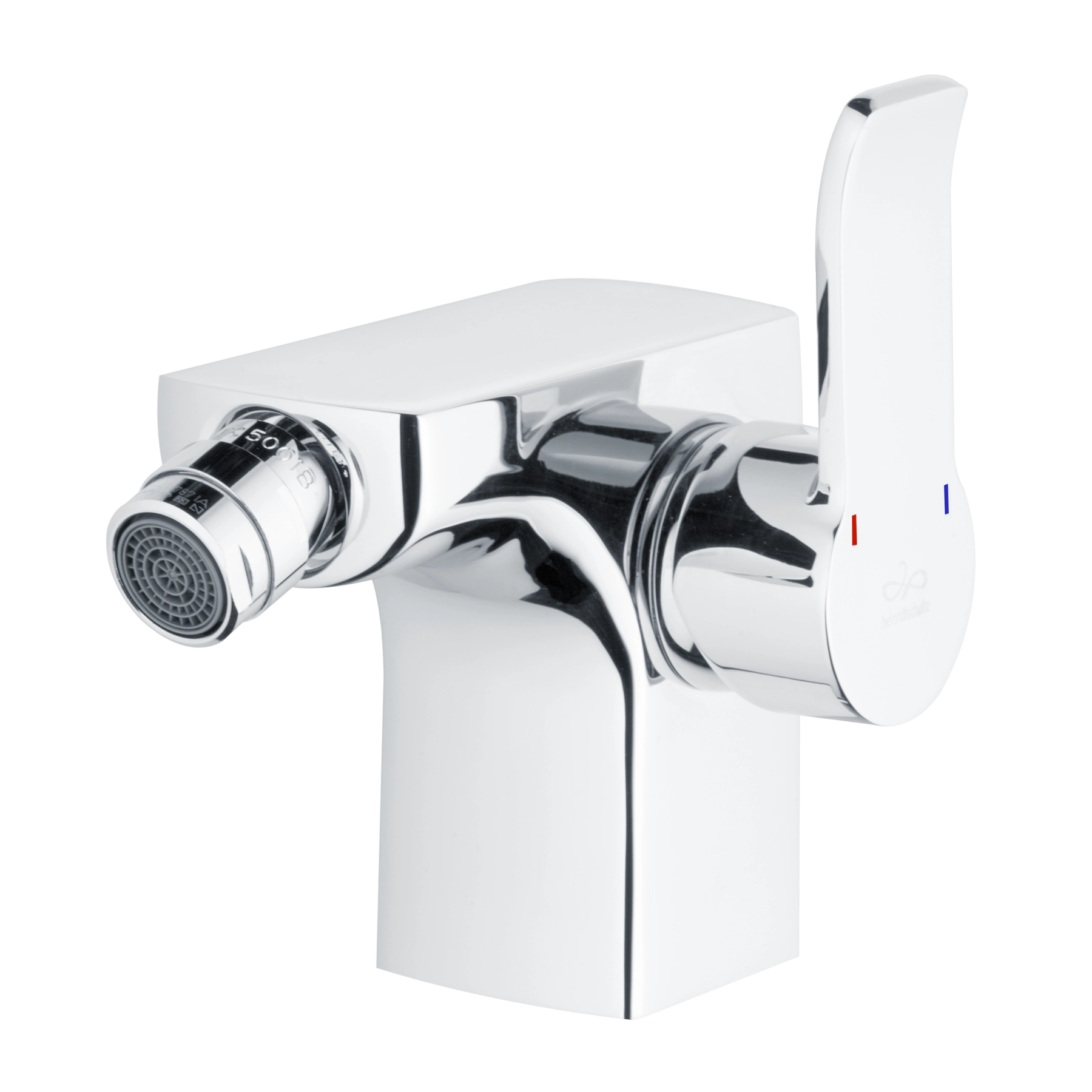

| Monolever-Bidet mixer |
| Mounting kit |
| Pop-up waste with pull rod |
| Assembly instruction |
| Care instruction |
