Note: We reserve the right to make technical changes that serve progress at any time. Product images may differ from the original. Errors excepted.

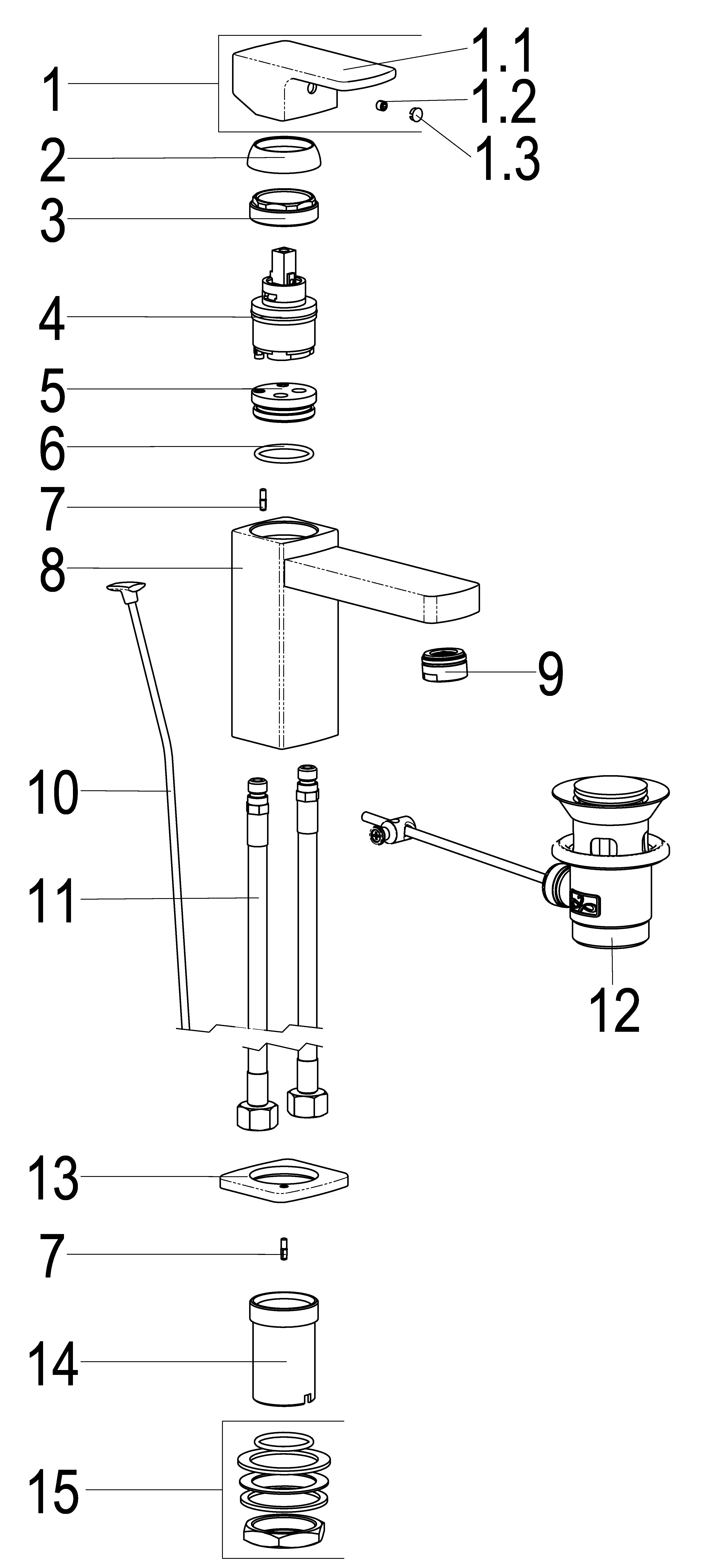

| Position | Description | Article-No |
| 01 | SH OPERATING LEVER ALPHA-LINE_500 | Z057990-00010 |
| 02 | SH ROSETTE M37 X 1,5 / D:39,7X12 | Z009110-00010 |
| 03 | SH SCREW CONNECTION TO LINE 62 | Z009111-00000 |
| 04 | SH CARTRIDGE FOR HIGH PRESSURE | Z009203-00001 |
| 09 | SH AERATOR SLC WITH RUBBER LIP | Z013980-00010 |
| 10 | SH PULL ROD WITH KNOB | Z009187-00010 |
| 11 | SH FLEXIBLE HOSE M10 X 1 – 3/8" | Z009141-00000 |
| 12 | SH POP-UP WASTE COMPLETE | Z001128-00010 |
| 15 | SH SCREW CONNECTION M34 X 1,5 | Z009196-00000 |
| Monolever-Wash basin mixer |
| Shaft screw connection kit |
| Pop-up waste with pull rod |
| Assembly instruction |
| Care instruction |
